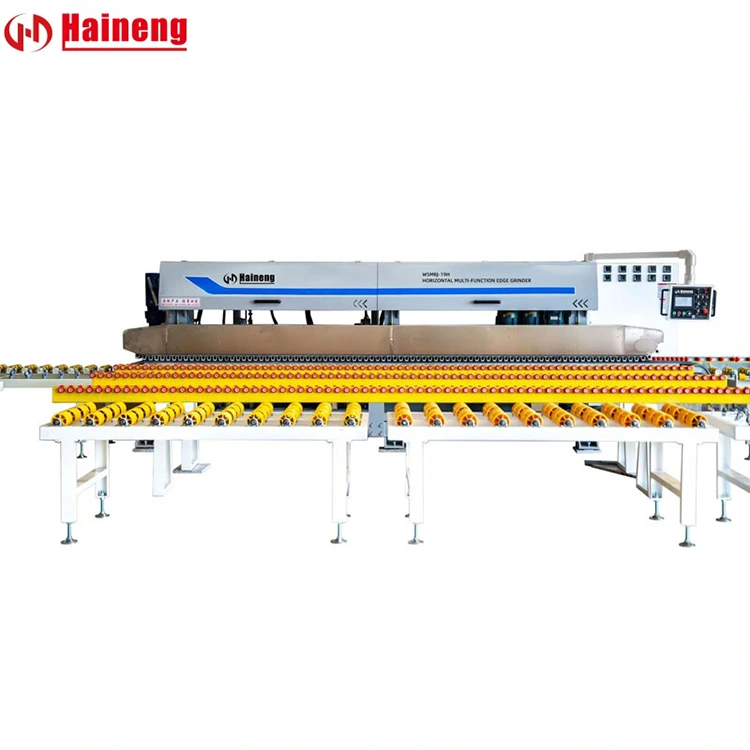

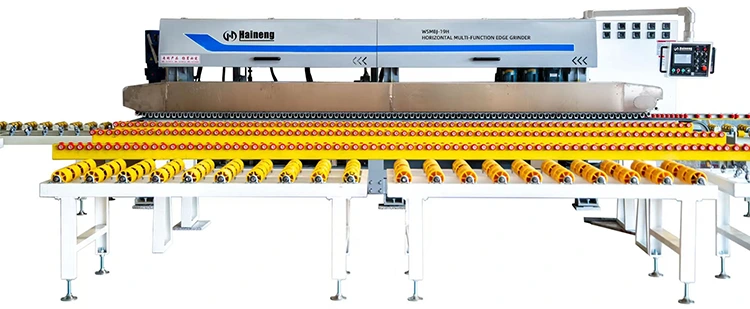

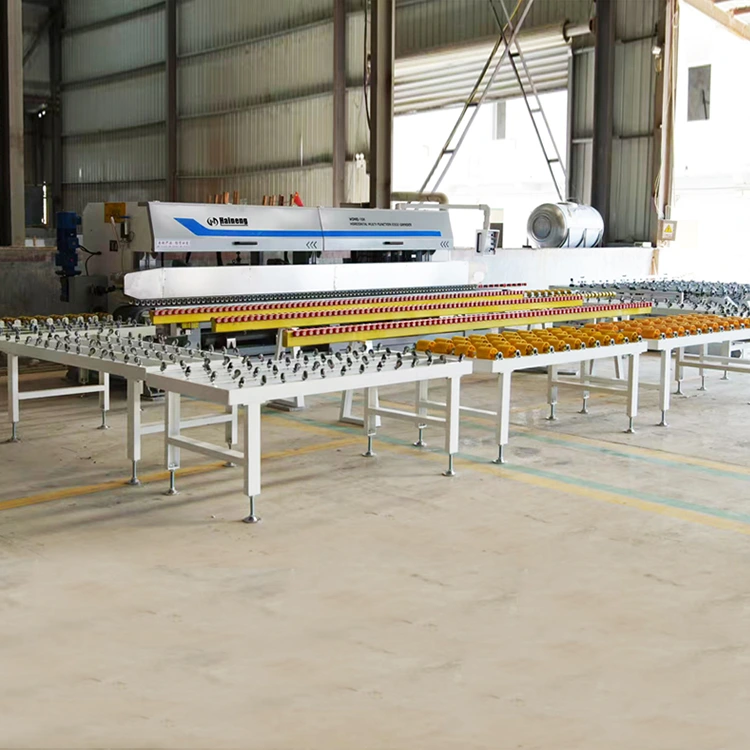

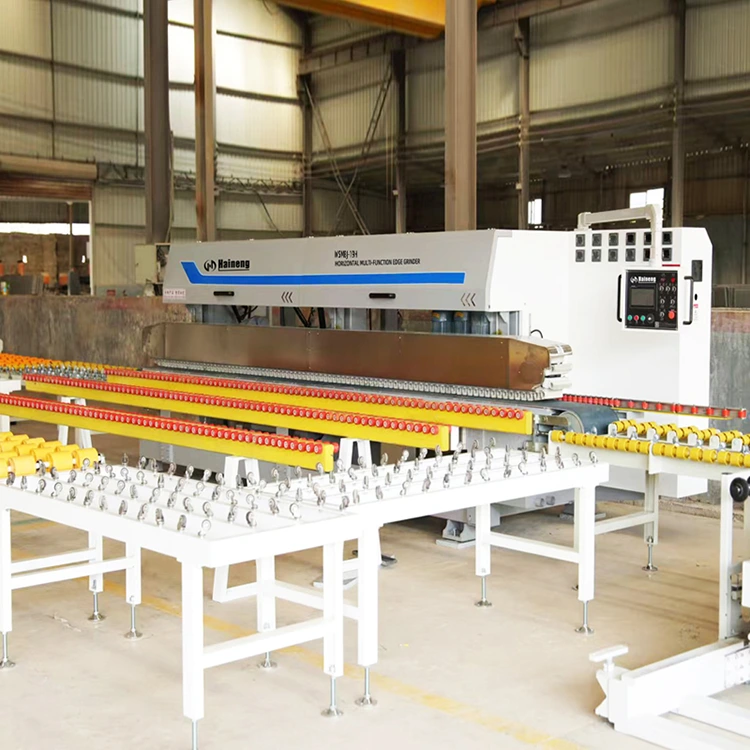

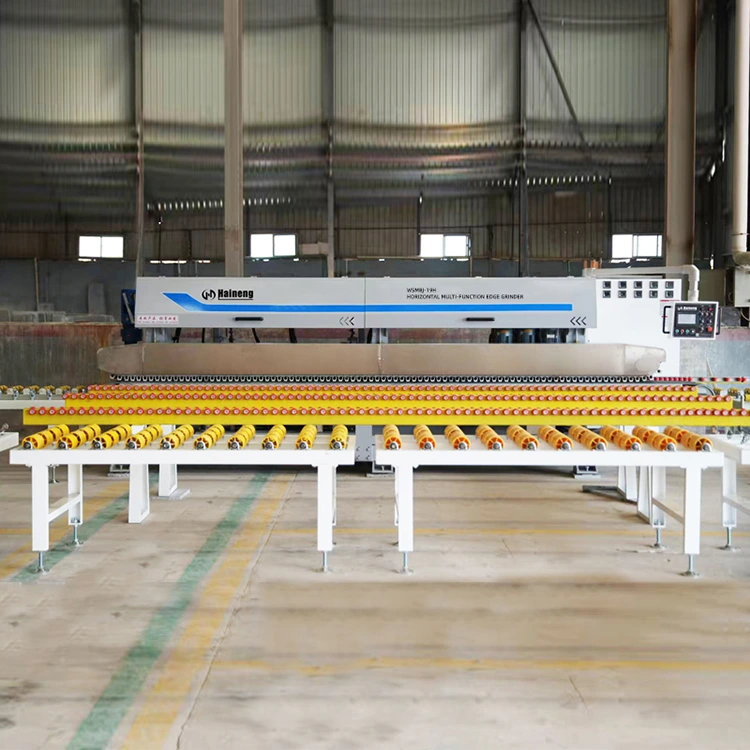

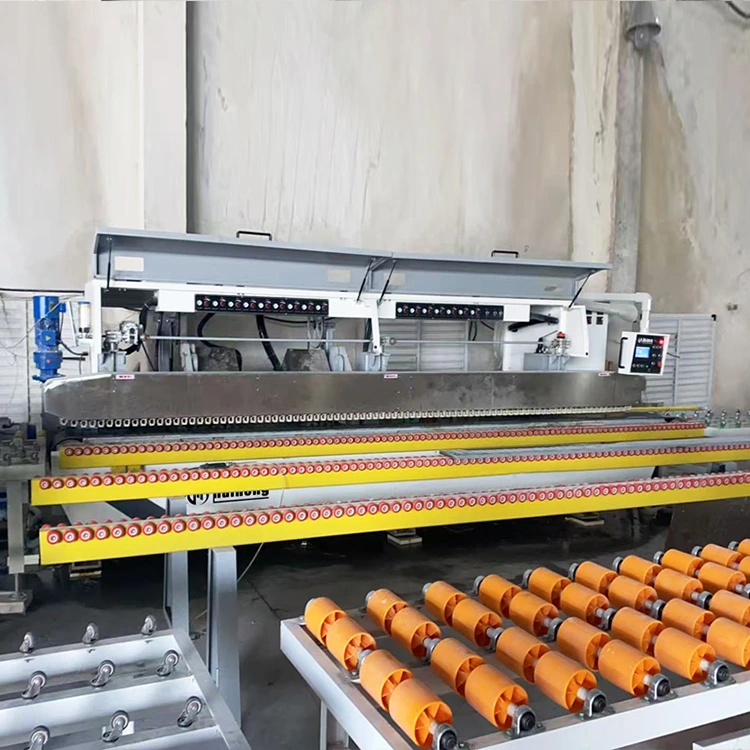

WSMBJ-19 19 Heads Multi-function Stone Edge Profiling Grinding Machine

Technical Parameters

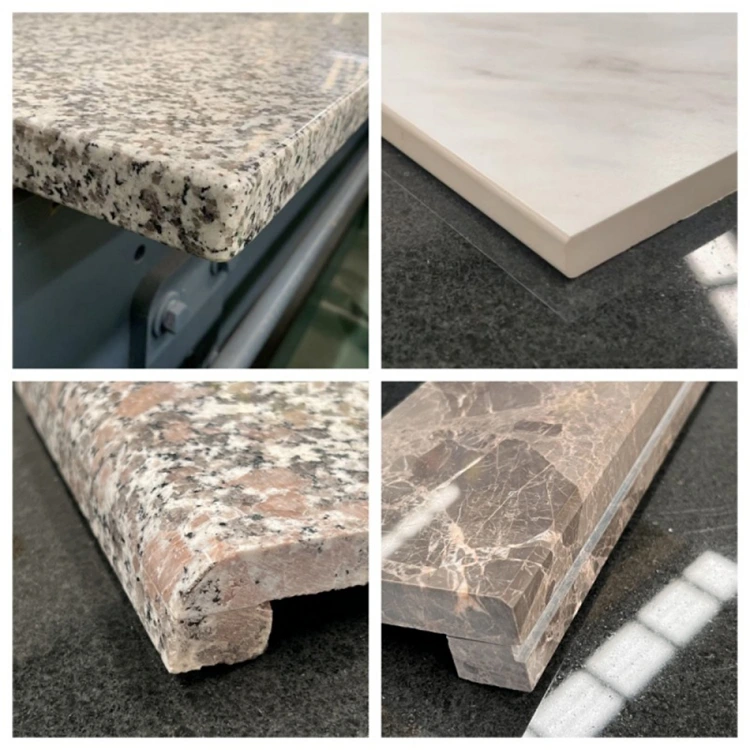

This 19-head multi-function stone edge grinder represents an advanced, high-performance automated stone processing solution. Designed specifically for modern stone production lines, it combines efficient operation, exceptional surface finish, and outstanding flexibility. It efficiently processes various edge profiles including Half Bullnosel, Full Bullnose, Radii Edge, and chamfer, widely applied in edge profiling for countertops, stair treads, and other stone applications.

Main features

1. Edge profiling for various stone materials , including marble, granite, quartz, sintered stone.

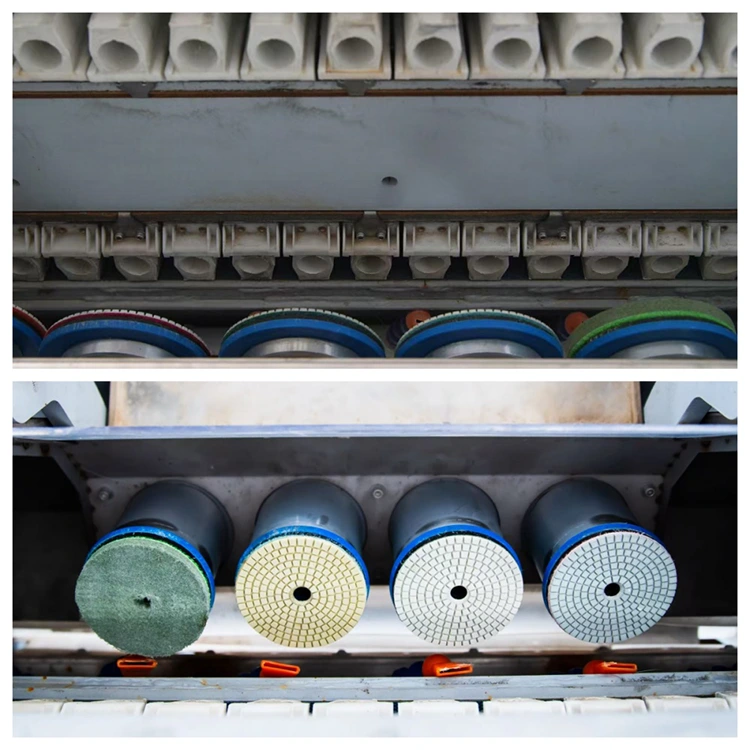

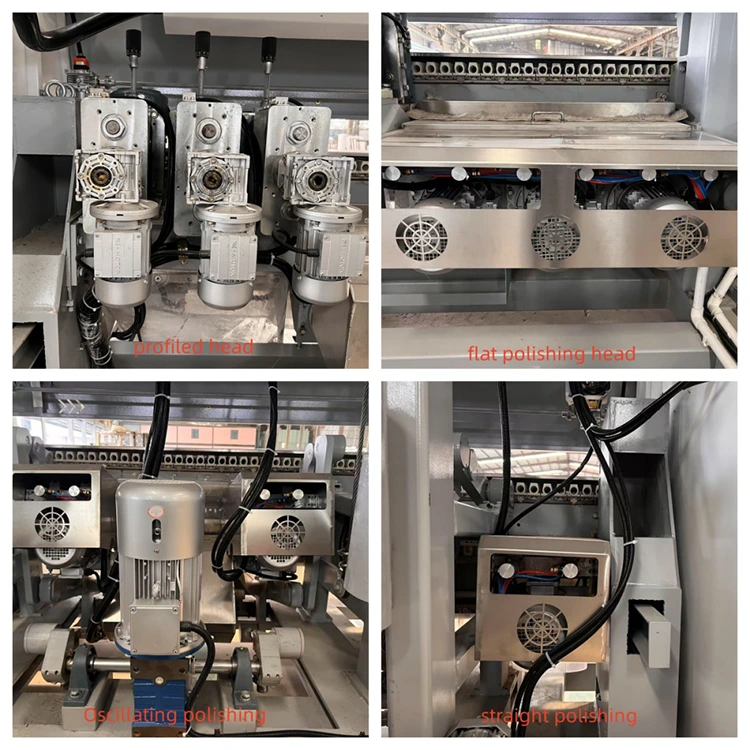

2. Equipped with 19 grinding heads, optimally combining coarse grinding, fine grinding, precision machining, and polishing heads to ensure stone edges exhibit ultra-high gloss, smooth lines, and a refined tactile finish.

3. Highly automated production integrates seamlessly into production lines, particularly suited for batch processing of long components like countertops and stair treads.

4. Utilises a 3kW variable-frequency speed-regulated motor, allowing users to infinitely adjust conveyor belt speed according to stone hardness and processing requirements, maximising output while maintaining quality.

5. Features a precision-engineered, robust structural design with a high-strength steel welded frame, ensuring stability and durability during prolonged operation.

6. Intelligent beam pressure system, with beam height easily adjustable via electric actuators for swift adaptation to varying panel thicknesses, ensuring precise and convenient operation.

7. High-elasticity silicone beam + 400mm extra-wide belt combination guarantees stable panel conveyance and uniform pressure application, effectively preventing warping, misalignment or breakage of thin or fragile panels during processing. Particularly suited for handling large-format stone panels.

8. Exceptional customisation flexibility: This equipment supports deep bespoke configuration, allowing personalisation based on your primary material type (e.g., optimised for stone slabs), panel dimensions, required gloss levels, and specific edge profiles. This ensures seamless integration into your production line.
