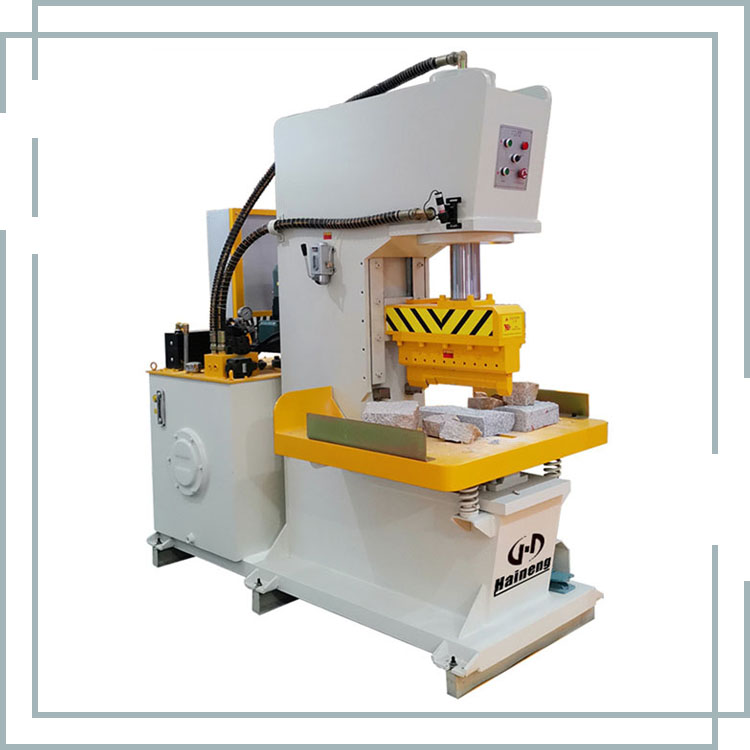

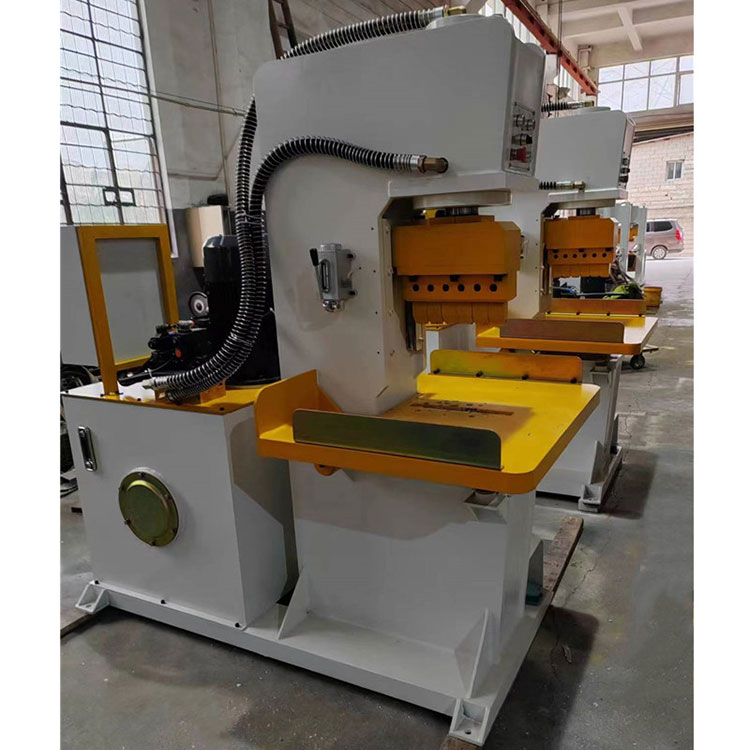

Stone Splitting Machine

Model:SDKJ-40T

SDKJ-60T

SDKJ-80T

SDKJ-120T

Xinhaineng warmly buy Stone Splitting Machine from our factory. We will provide you with good service and factory discounted prices.The working principle of the splitting machine is relatively simple, which is to split the stone by mechanical movement.

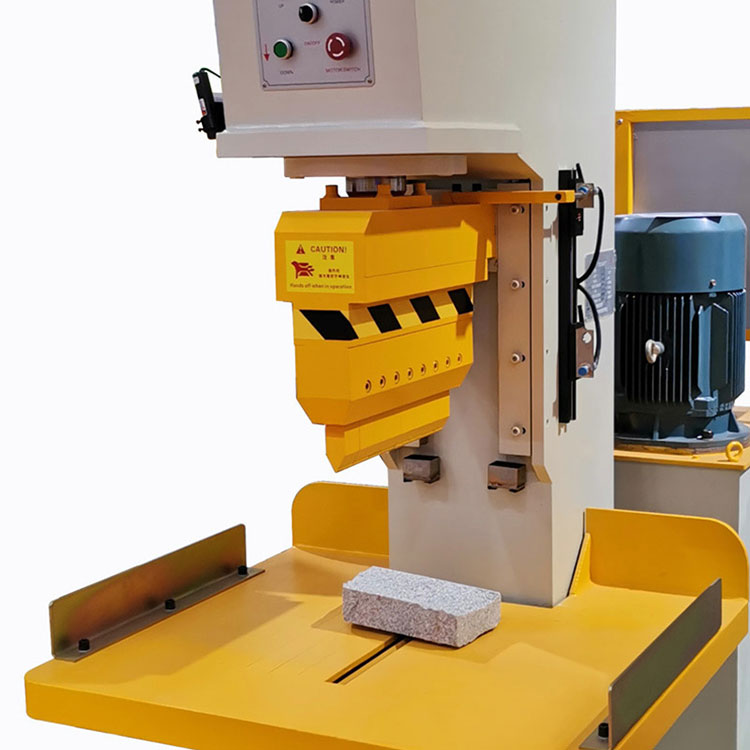

Stone splitting machine is an important stone mining equipment, mainly composed of a frame, a feeding device, a base, a pressurizing mechanism, a splitting frame and a control system. Among them, the frame is the main body of the splitting machine, the pressurizing mechanism is an important component to achieve stress, the splitting frame is the core part of the splitting operation, and the control system plays the role of coordinating various components to ensure the normal operation of the equipment.


Working principle of Stone splitting machine:

The working principle of the splitting machine is relatively simple, which is to split the stone by mechanical movement. First, place the stone on the feeding device, and then pressurize the stone through the pressurizing mechanism to form a crack of a certain size. Then, adjust the position and angle of the splitting frame, align the blade with the position of the crack, turn on the machine for splitting operation, and the cut stone can be processed and used according to the required size.


Product features of Stone splitting machine:

1. High efficiency and energy saving: The splitting machine adopts advanced control system and transmission device, which can achieve high efficiency and high quality crack formation in the splitting operation, and the energy saving effect is also obvious.

2. Safe and reliable: The pressure mechanism of the splitter is reasonably designed, with good stability and convenience, and the electronic alarm and automatic cut-off device are used to ensure the safety and reliability of the equipment during operation.

3. Wide application: The splitter is suitable for processing various stone materials, especially for high-strength rocks such as marble, granite, and blue mountain stone.


Technical Data



Model No.

SDKJ-40T

SDKJ-60T

SDKJ-80T

SDKJ-120T

Max.Pressure

ton

40

60

120

120

Blade feeding speed

mm/s

80

80

90

90

Max. working height

mm

250

200

300

300

Max. working length

mm

200

300

400

500

Output per hour

m2/h

8

10

18

18

Power

kw

7.5

11

11

11

Voltage / Frequency

V / Hz

380 / 50

380 / 50

380 / 80

380 / 80

Flow rate

L/M

41

41

47

47

Hydraulic oil grade

#

46

46

46

46

Oil tank capacity

L/kg

240 / 200

350/290

350/290

350/290

Gross weight

kg

1300

1400

1900

2400

Dimensions ( L x W x H )

mm

1500x960x2000

1800x1050x2050

2100x1100x2300

2250x1100x2250

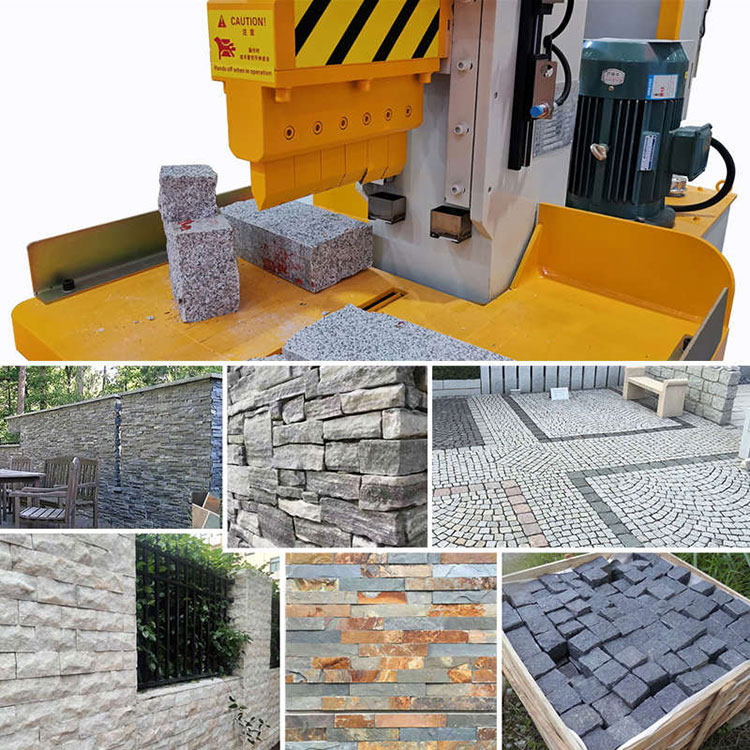

Processing process




Packaging & Shipping
