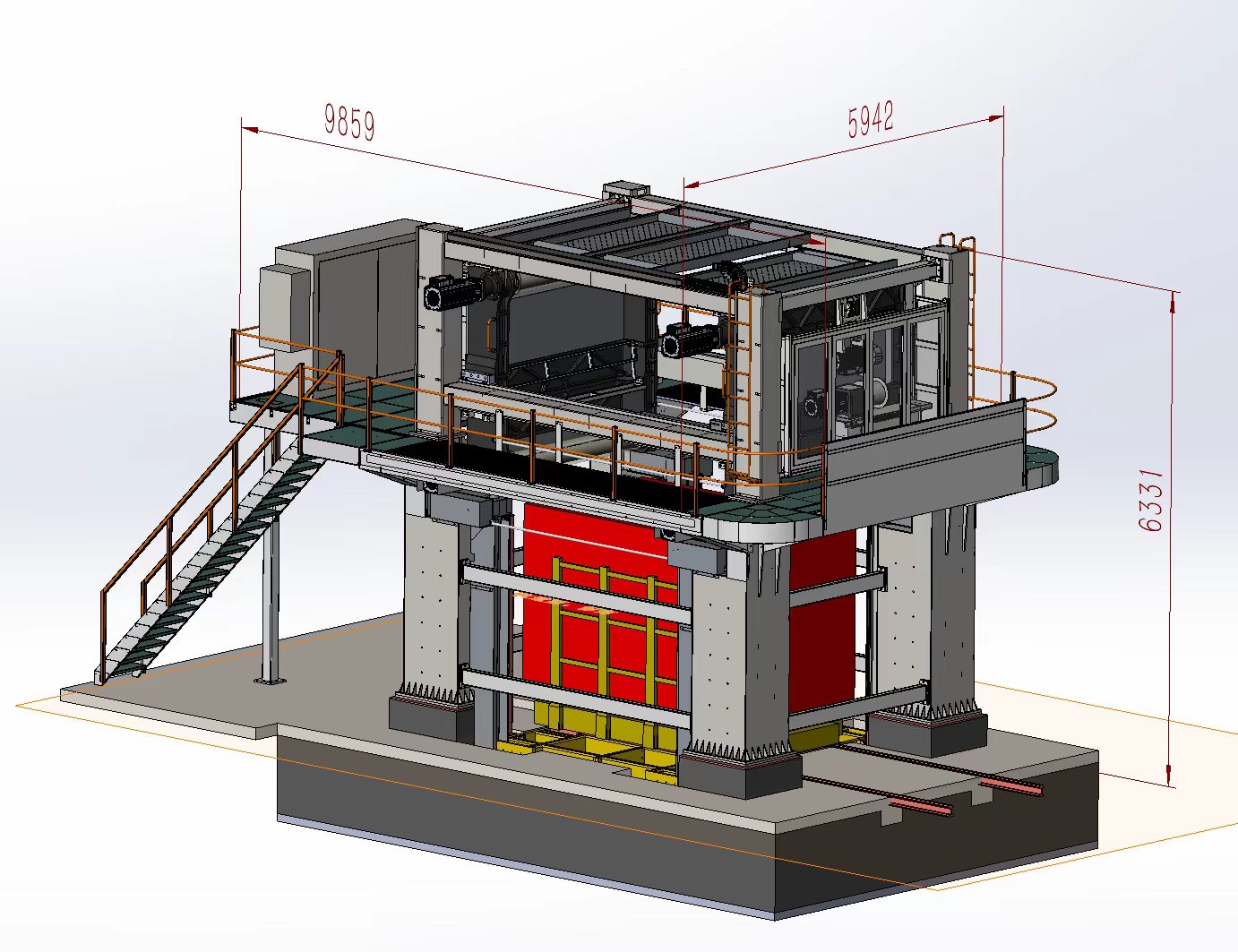

1. High-Speed Diamond Wire Saw Machine Overview

Discover the next generation of industrial stone processing technology with the Haineng High-Speed Diamond Wire Saw Machine. Engineered for high-volume marble processing plants, granite fabrication centers, and modern stone quarries, this advanced stone cutting equipment revolutionizes traditional block gang sawing and heavy rope sawing methods.

By utilizing ultra-thin diamond wire loops with diameters ranging from 0.3mm to 1.0mm, the Haineng High-Speed Diamond Wire Saw Machine drastically reduces raw stone material kerf loss. This precision slicing performance boosts overall usable stone slab yield by 10% to 30% compared to traditional machinery.

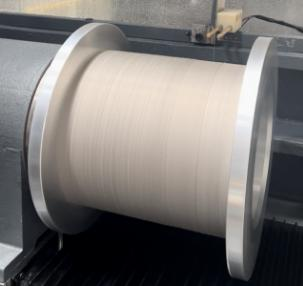

Operating at dynamic wire line speeds up to 35 meters per second and featuring an enormous continuous wire storage spool capacity of 30,000 to 50,000 meters, the Haineng High-Speed Diamond Wire Saw Machine delivers unmatched cutting accuracy and mirror-smooth slab finishes while slashing factory electrical power costs.

2. Technical Innovation & Structural Architecture

Heavy-Duty Structural Engineering & Integrated Casting

The structural foundation of the Haineng High-Speed Diamond Wire Saw Machine absorbs extreme vibrational forces during high-speed continuous stone slicing operations. The primary frame structure is constructed using 60mm high-tensile structural steel plates, establishing a total machinery weight exceeding 60 metric tons.

The primary roller guide framework utilizes HT300 high-grade gray cast iron manufactured through a single-piece integrated molding process. This robust cast iron component prevents structural deformation under high wire tension during continuous factory operations.

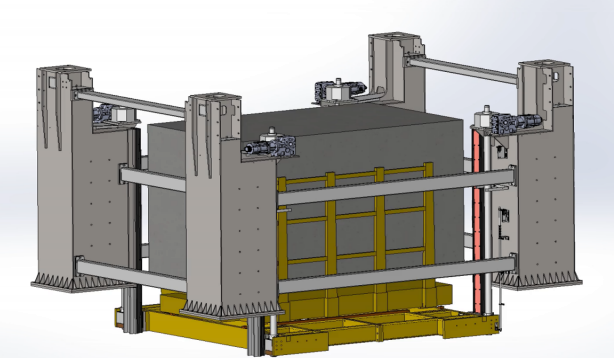

Servo-Driven Stone Elevation & Automatic Alignment Protection

Unlike traditional block gang saws that lower heavy top bridge assemblies, the Haineng High-Speed Diamond Wire Saw Machine incorporates an inverted stone elevation mechanism driven by four synchronized precision servo lifting motors. The system achieves variable vertical lifting speeds between 0 and 500 mm/min.

Integrated real-time laser alignment sensors continuously monitor the stone block positioning during cutting. If a raw marble block shifts or tilts slightly, the automatic elevation correction algorithm instantly adjusts motor torque, ensuring slab thickness uniformity across the entire block surface.

Direct Drive Wire Management & 388N Dynamic Tension Control

Maintaining continuous diamond wire tension is vital when cutting ultra-thin marble slabs. The Haineng High-Speed Diamond Wire Saw Machine features an optimized single-sided single-guide wheel configuration paired with a high-tension direct-drive spooling mechanism.

While conventional rope saws operate at wire tensions around 180N to 200N, the Haineng High-Speed Diamond Wire Saw Machine maintains continuous dynamic wire tension up to 388N. Rapid-response servo feedback loops rebalance tension within milliseconds when wire resistance fluctuates, eliminating wire drifting and preventing slab bowing.

Oil-Cooled Counteraxle Assembly & Sealed Oil-Immersed Drive

To support dynamic wire speeds up to 35 meters per second, the Haineng High-Speed Diamond Wire Saw Machine features ten specialized oil-cooled main and counteraxle gearboxes. Double-row precision bearings allow the axle assemblies to maintain continuous stability at speeds up to 1,500 RPM.

The wire distribution and traveling mechanisms operate within a completely enclosed, oil-immersed drive housing supported by an automated positive-pressure oil transport system. This oil-submerged design prevents abrasive stone powder from contacting bearing surfaces, extending machinery lifespan significantly compared to dry-lubricated gang saws.

3. Technical Specifications Matrix

4. Material Yield Maximization & Economic Payback Analysis

Extreme Kerf Loss Reduction

The primary economic benefit for stone fabricators adopting the Haineng High-Speed Diamond Wire Saw Machine is the dramatic reduction in tool kerf width. Traditional multi-rope saws and diamond gang saws generate kerf loss between 4.0mm and 6.0mm per slot.

In comparison, the Haineng High-Speed Diamond Wire Saw Machine achieves a micro-kerf width between 0.50mm and 0.65mm (utilizing 0.45mm to 0.60mm wire diameter with a 0.05mm gap clearance). This kerf reduction maximizes the volume of finished stone slabs generated from every raw stone block.

Finished Slab Yield Comparison (3.0m × 2.0m × 2.0m Raw Block)

Elimination of Vacuum Resin Encapsulation Costs

When processing fragile, fractured, or porous luxury stones such as Hermes Gray, Yundola Gray, Fat Gray, or Magnolia Marble, traditional gang saws require factory workers to perform expensive vacuum resin encapsulation on every raw block to prevent slab breakage. Resin sealing adds approximately 2,000 RMB (~$280 USD) in epoxy chemical expenses per raw block.

Because the Haineng High-Speed Diamond Wire Saw Machine exerts minimal lateral shear pressure on delicate stone structures, fragile marble blocks can be sliced directly without vacuum resin sealing. Eliminating resin encapsulation saves thousands of dollars per batch in chemical material expenses.

Common-Bus Servo Energy Efficiency & Reduced Wire Wear

Powered by an Inovance custom multi-axis servo control system featuring a shared DC common-bus power architecture, the Haineng High-Speed Diamond Wire Saw Machine recycles braking energy. Factory sub-metering tests confirm electrical consumption averages between 1.5 kWh and 2.0 kWh per square meter of sliced stone.

Compared to traditional frame saws consuming up to 10 kWh per square meter, the Haineng High-Speed Diamond Wire Saw Machine lowers power expenditures by up to 80%. Optimized wear-resistant rubber coatings allow guide wheels to be re-grooved up to six times, with each groove cutting approximately ten full block loads before maintenance.

5. Competitive Machinery Benchmarking Matrix

6. Material Processing Versatility & Flexible Factory Layout

High-Value Stone Material Compatibility

The Haineng High-Speed Diamond Wire Saw Machine excels at cutting high-value stone varieties where kerf loss directly dictates factory profitability:

• Calcite & Soft Marbles: White Magnolia, Volakas White, Carrara White, Crema Marfil.
• Colored & Fragile Marbles: Hermes Gray, Yundola Gray, Fat Gray, Black Marquina.
• Engineered & Sintered Materials: Large-format quartz blocks, terrazzo blocks, and industrial structural ceramics.

Four-Direction Multi-Directional Block Loading

Traditional block gang saws rely on rigid rail cart systems, restricting factory layout flexibility and increasing trolley maintenance costs. The Haineng High-Speed Diamond Wire Saw Machine features direct ground block positioning with four-direction loading access.

Overhead bridge cranes or heavy forklifts can load raw stone blocks onto the elevation platform from the front, rear, left, or right. This multidirectional loading capability allows factory planners to optimize floor space, streamline raw block material flow, and integrate multiple wire saw units into synchronized production lines.

Eco-Friendly Operation & 80% Dust Reduction

Environmental protection regulations are increasing across international stone processing regions. Traditional frame saws produce toxic steel grit and lime slurry mixtures requiring chemical treatment plants.

The Haineng High-Speed Diamond Wire Saw Machine uses clean recirculated cooling water combined with ultra-thin diamond wire loops. This process reduces stone powder emissions by over 80% and eliminates chemical slurry, helping stone factories pass strict local environmental audits.

7. Smart Factory Connectivity & IoT Ecosystem Integration

Modern stone processing demands complete production visibility. The Haineng High-Speed Diamond Wire Saw Machine integrates advanced Internet of Things (IoT) hardware architecture and open API protocols designed for modern Industry 4.0 factories:

• Factory ERP Systems Integration: The electronic control system transmits real-time job metrics, cutting durations, dynamic wire linear speed, and output square meters directly into factory ERP platforms, SAP software, or custom stone management databases.
• Mobile App Management Dashboards: Factory owners and plant managers can monitor real-time machinery status, motor temperatures, wire spooled meters, and daily square meter output using dedicated iOS and Android mobile applications.
• Automatic Emergency Safety Protection: The equipment includes instant power-failure braking and automated wire disconnection sensors. If an unexpected power loss occurs, custom high-torque servo motors stop wire movement within milliseconds, preventing tangled wire networks and protecting rubber rollers.
• Over-The-Air (OTA) Remote Updates: Electrical control parameters, specialized cutting algorithms for new stone varieties, and software feature updates are delivered automatically via OTA cloud pushes, maintaining machinery performance without on-site technician visits.

8. Global After-Sales Support & Turnkey Engineering

Haineng provides comprehensive service programs to ensure fast machinery installation, high operational uptime, and rapid investment payback for international stone manufacturing clients:

Pre-Sale Engineering & Material Testing

• Stone Application Testing: Send sample raw stone blocks to Haineng laboratories to analyze cutting speed formulas and wire consumption metrics for regional stone varieties.
• 3D Factory Layout Planning: Haineng civil engineers prepare 3D CAD facility blueprints, foundation pit designs, and utility specs tailored to client factory spaces.
• Factory Operational Tours: Guided visits to active Haineng wire saw production lines operating in major stone processing centers such as Quanzhou and Yunfu.

On-Sale Installation & Operator Training

• On-Site Machinery Assembly: Factory-certified field engineers manage foundation anchoring, structural assembly, alignment tuning, and electrical commissioning.
• Comprehensive Operator Training: Hands-on training modules for plant workers covering touch-screen operation, wire threading, tension calibration, and preventive maintenance.
• Contractor Facilitation: Direct introduction to professional cutting contractors and certified diamond wire manufacturers.

After-Sales Service & System Care

• Rapid Regional Technical Support: Dedicated service hubs ensure rapid dispatch of replacement components and maintenance teams.
• Lifetime System Software Upgrades: Continuous free upgrades for computer electronic control systems, PLC logic, and stone cutting database formulas.
• 24/7 Remote Online Diagnostics: Remote access modules enable technical teams to diagnose electrical sensors and control logic online, minimizing facility downtime.
