Feature
Fully automatic multi-function stone tile cutting machine integrates cutting, chamfering, grooving and edge grinding capabilities into a single unit. Featuring a foldable portable design with integrated castors, multi-function stone tile cutting machine is suitable for precision processing of various materials including ceramic tiles, stone slabs and natural stone. Equipped with an intelligent one-touch control system, water-circulation dust extraction technology and infrared laser positioning, this tile cutter machine delivers efficient, dust-free operation with minimal error. Tile cutting machine represents the ideal equipment for the construction, renovation and stone processing industries.

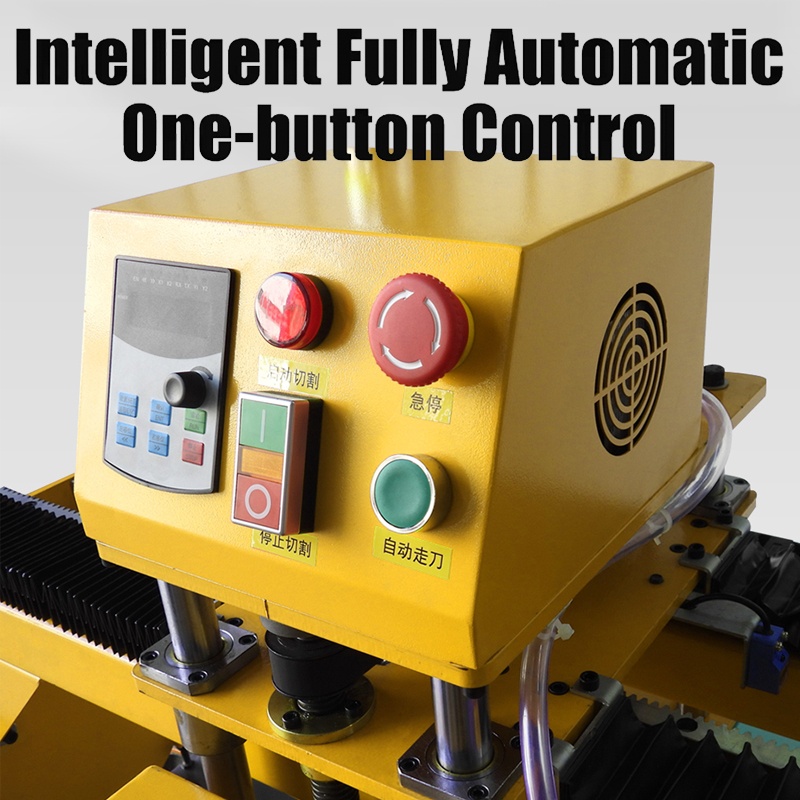

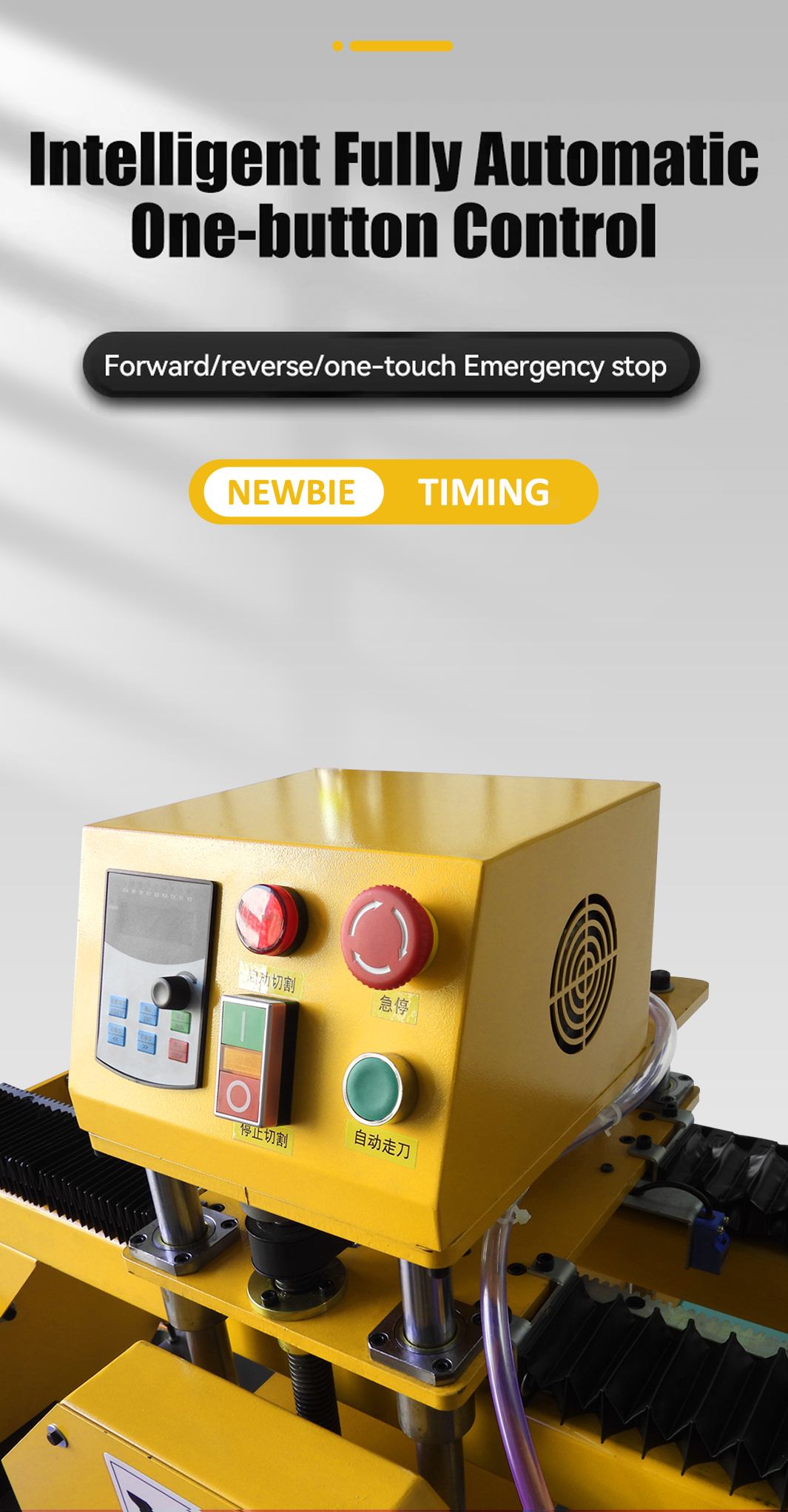

1. Intelligent fully automatic one button control.

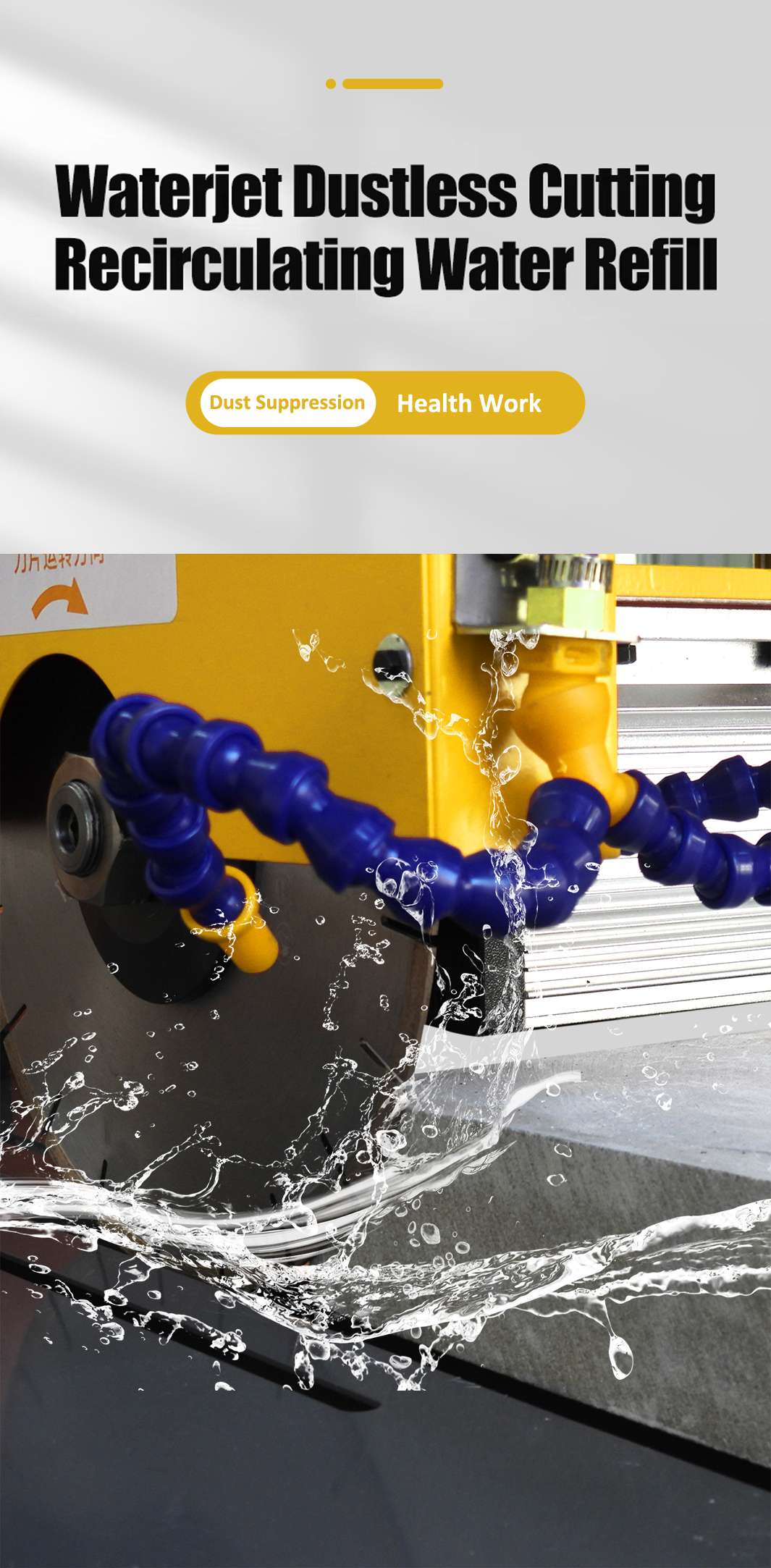

2. Water jet dust-free cutting cycle water replenishment.

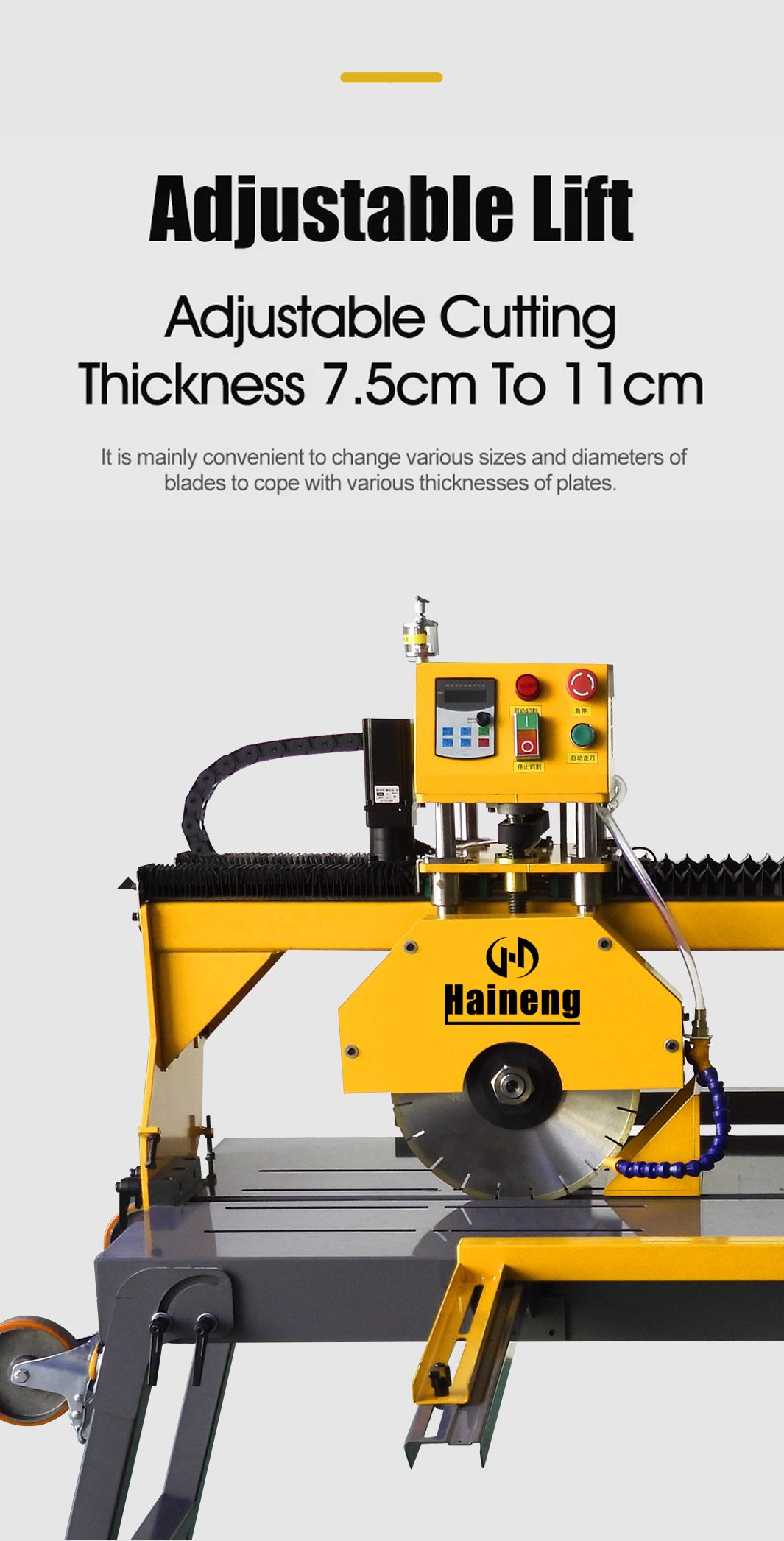

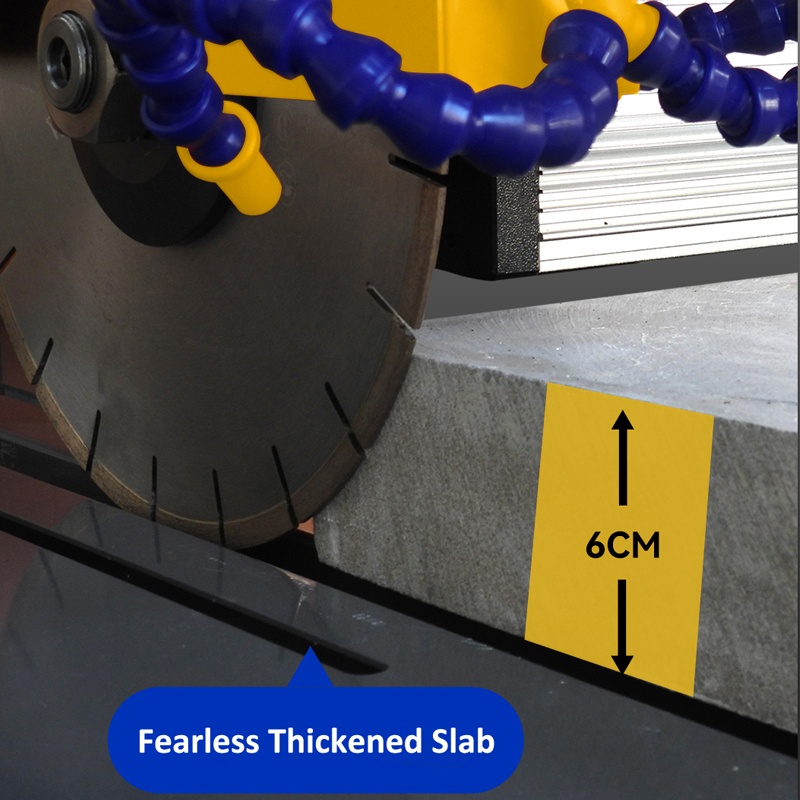

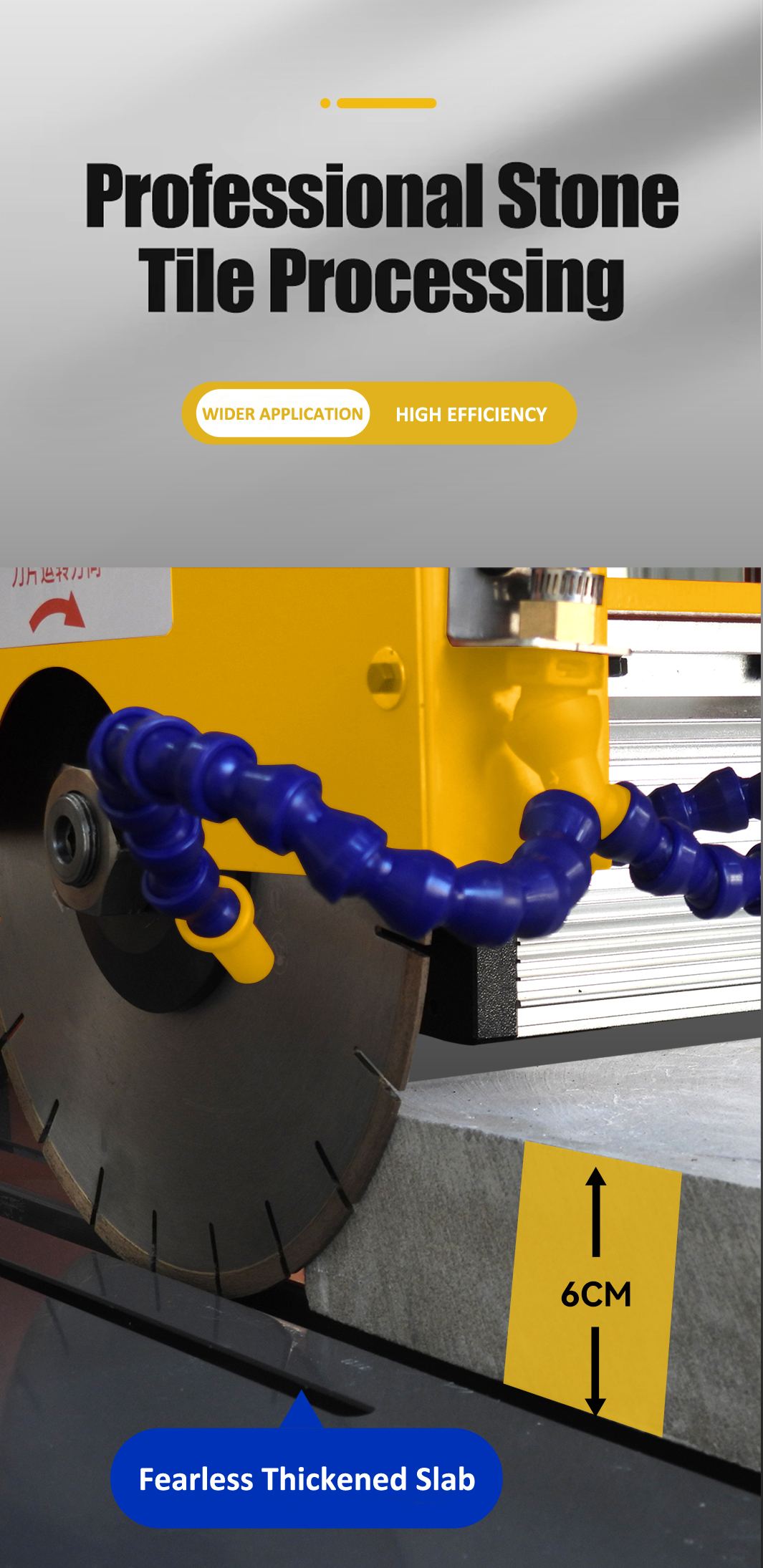

3. Cutting thickness 0cm ~ 11cm adjustable.

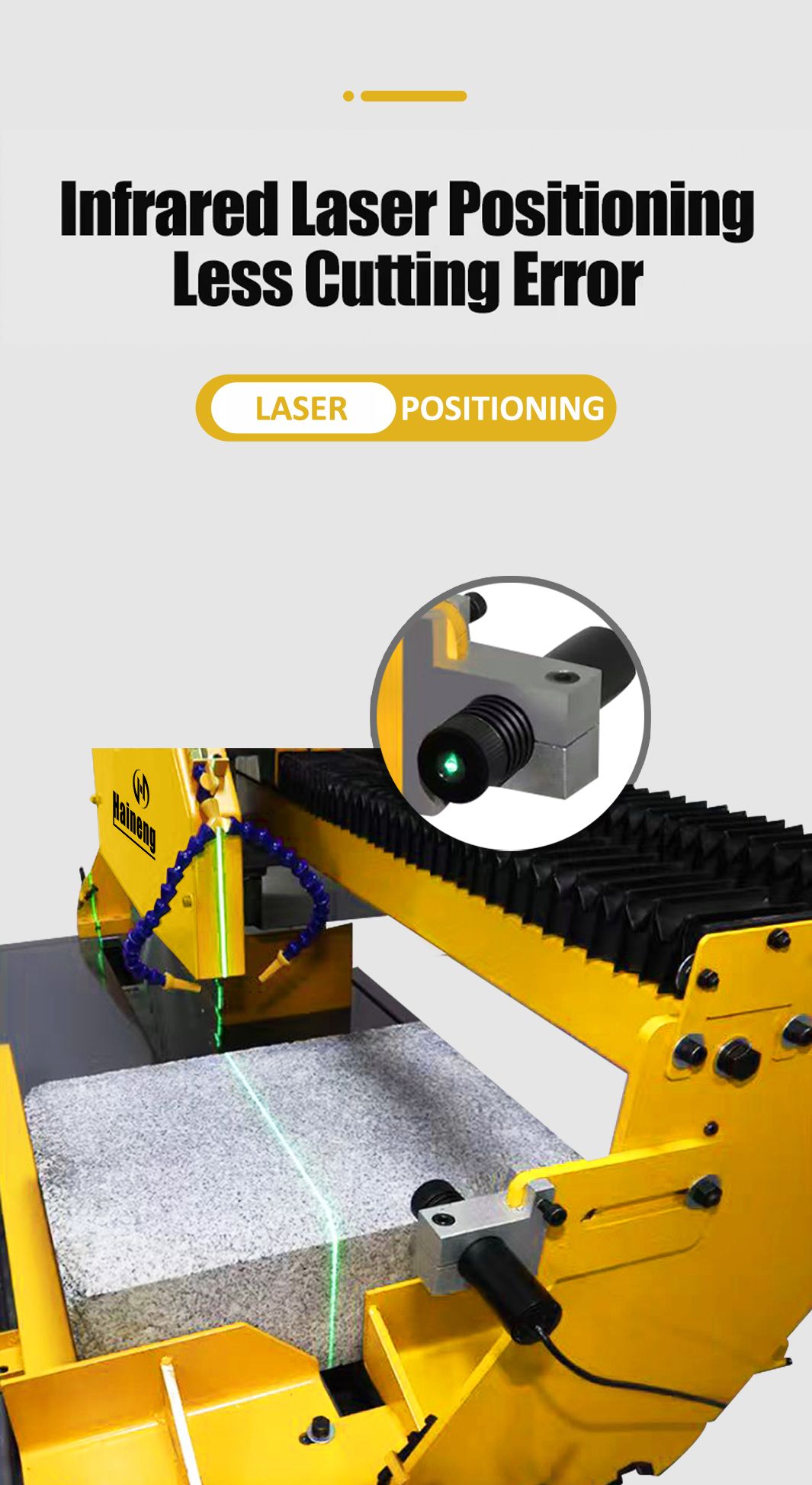

4. Infrared laser bright and clear for easy alignment

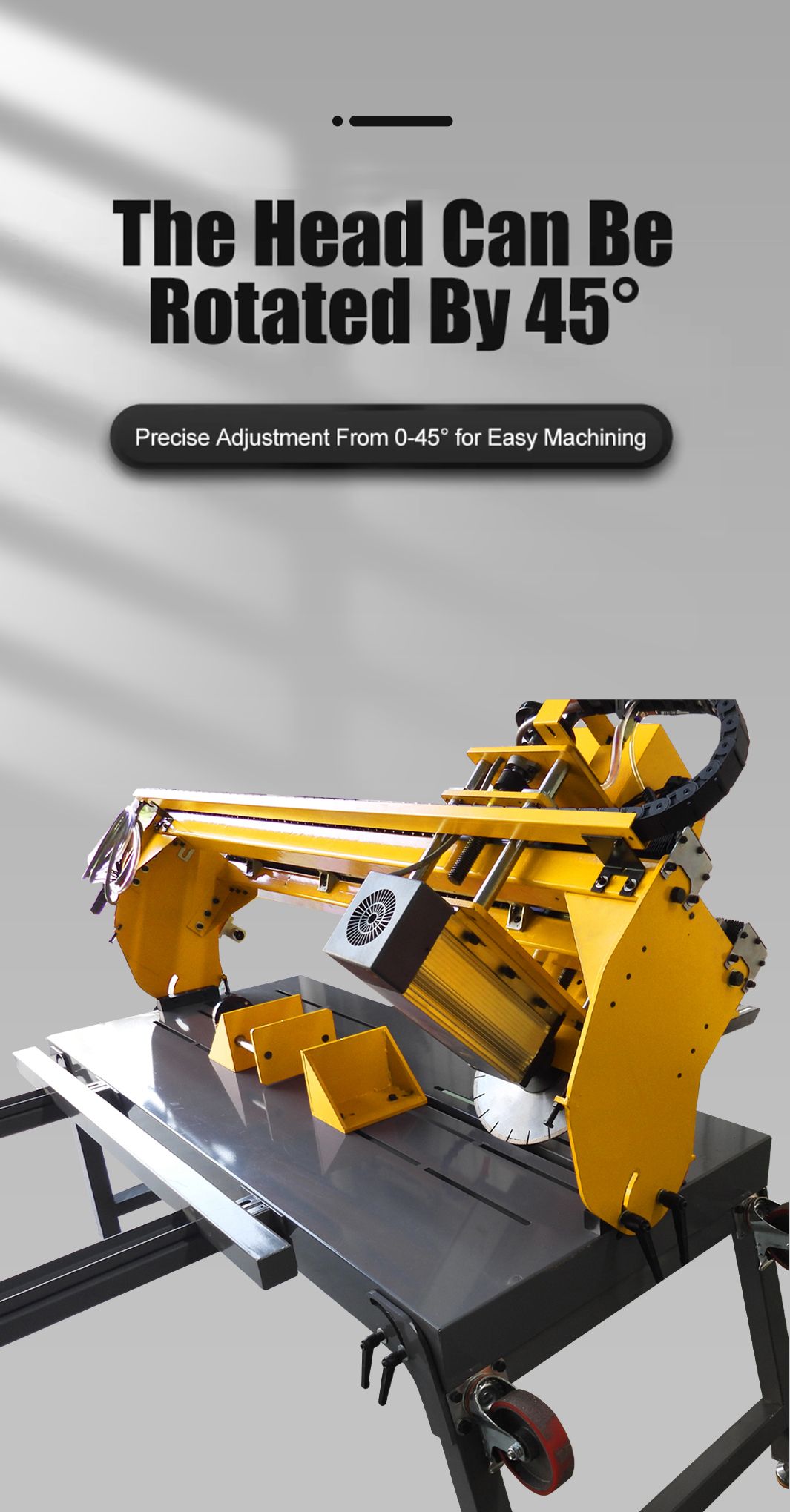

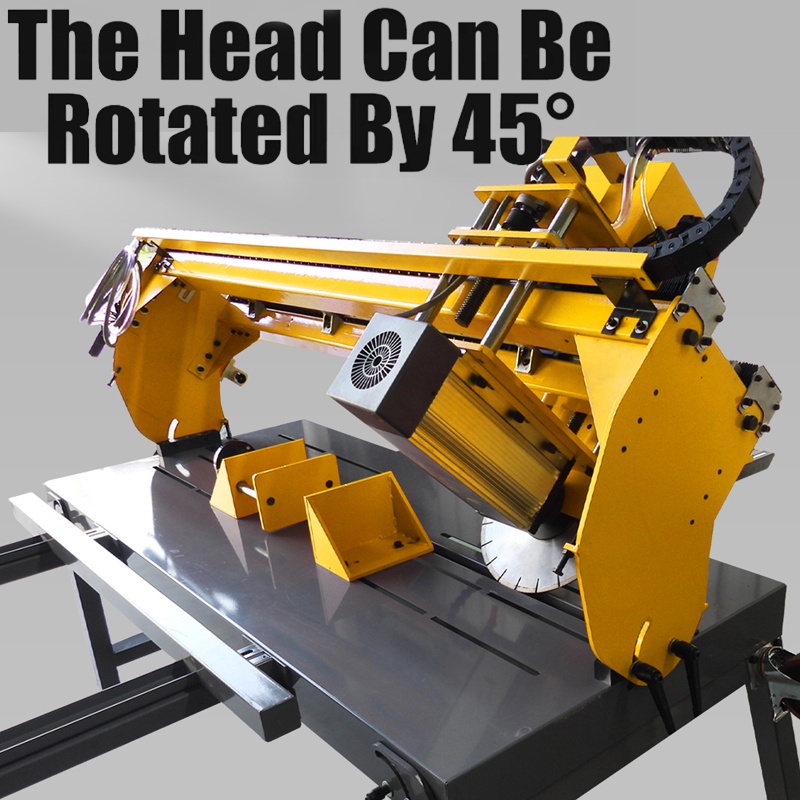

5. The cutting head can rotate through 45 degrees to perform chamfering operations.
Technical parameters
| Model | CZJ-800/1000/1200/1500/1800/2000/2400/3200 |
| Product name | Multi-function tile cutting machine |
| Voltage | 220V/380V |

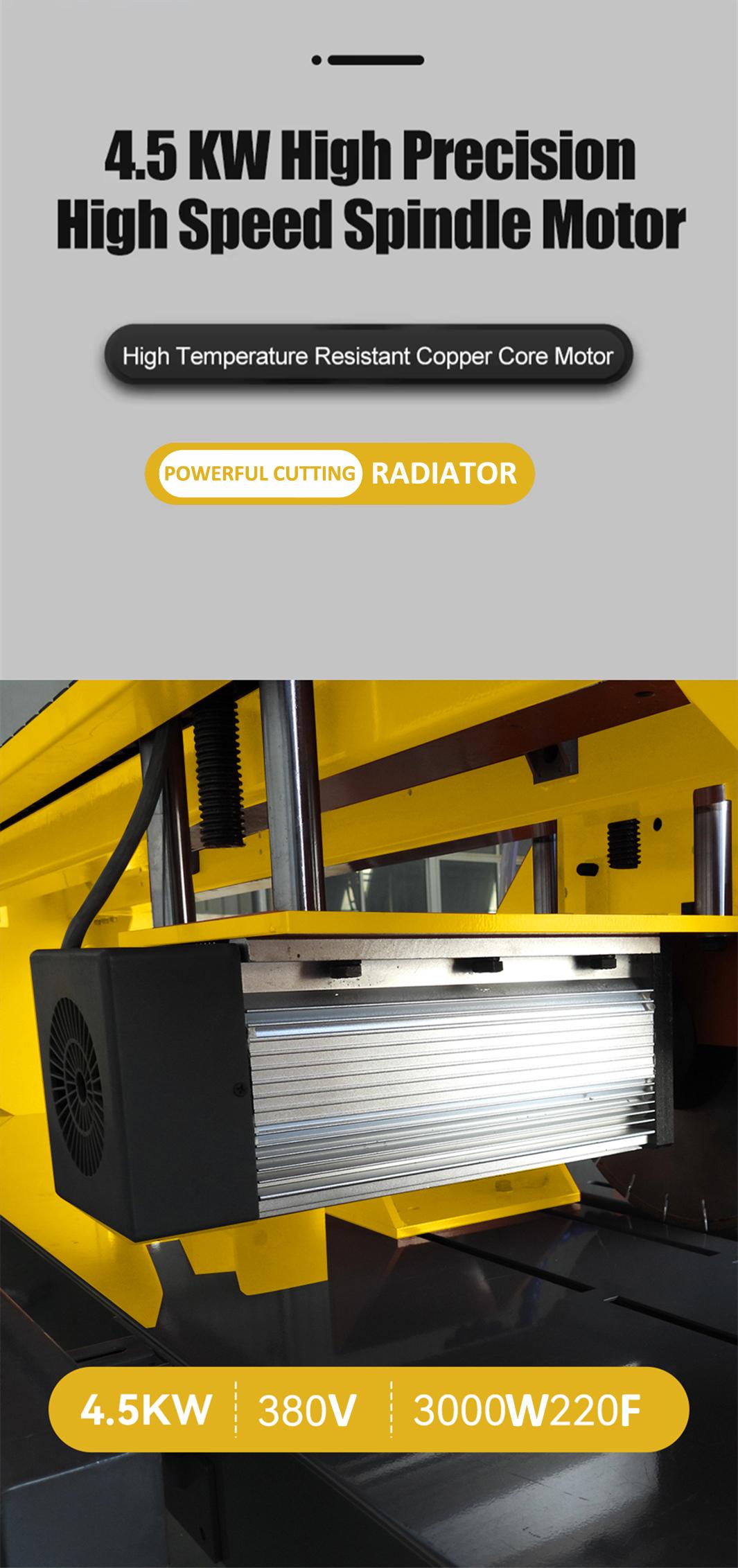

| Power | 3000W/4500W |

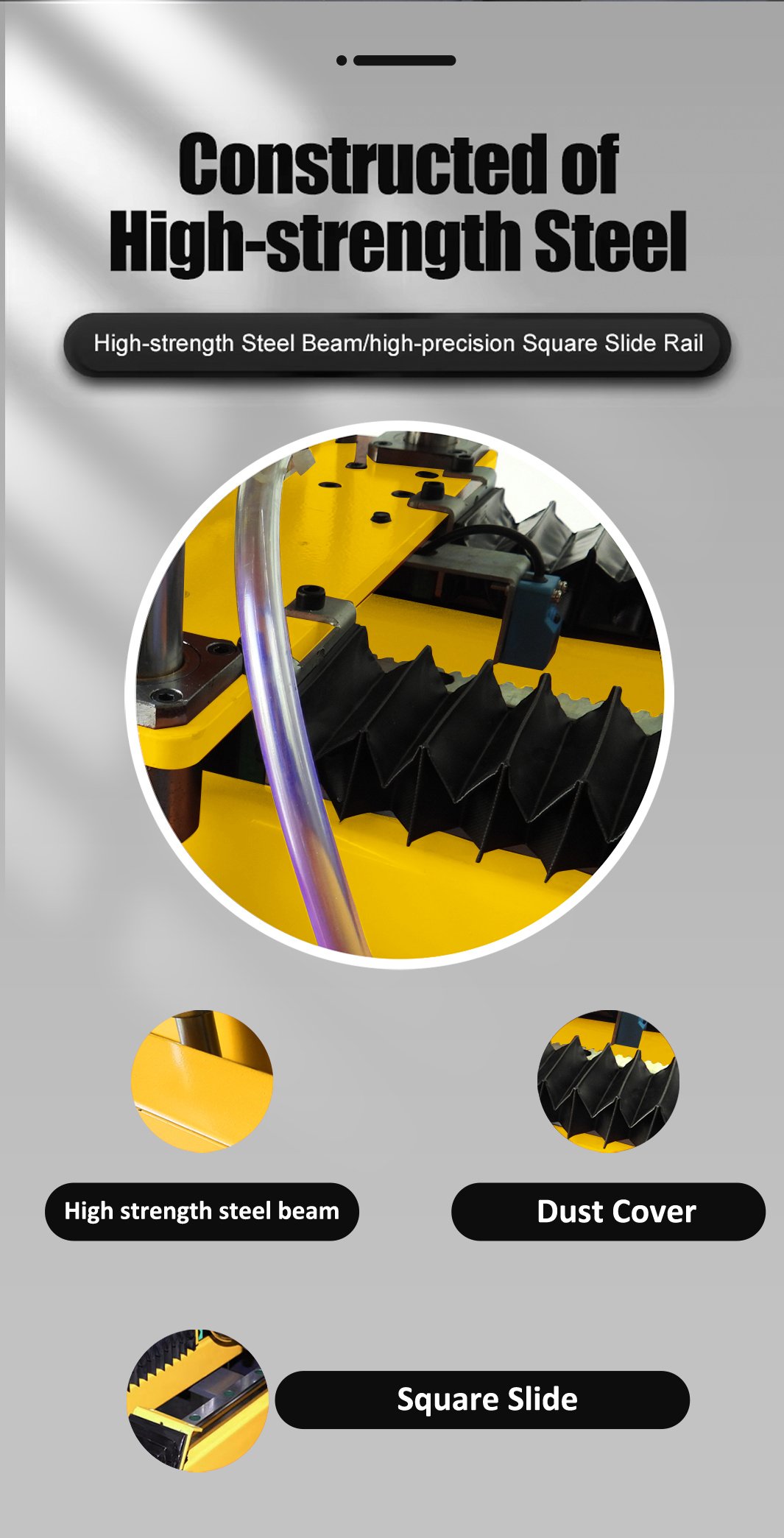

| Material | High-strength Steel Plate |
| Rated Speed | 3000r/min |
| Maximum cutting thickness | 110mm |
| Product features | Cutting, Chamfering, Edge grinding,Grooving |
| Model | Cutting length(mm) | Table size(mm) | Packaging Sizemm | Net weightKGS | Gross weightKGS |
| CZJ-800 | 800 | 1400*700 | 1550*800*1100 | 215 | 255 |
| CZJ-1000 | 1000 | 1600*700 | 1750*800*1100 | 225 | 275 |
| CZJ-1200 | 1200 | 1800*700 | 1950*800*1100 | 235 | 295 |
| CZJ-1500 | 1500 | 2000*700 | 2250*800*1100 | 250 | 320 |
| CZJ-1800 | 1800 | 2300*700 | 2550*800*1100 | 270 | 350 |
| CZJ-2000 | 2000 | 2500*700 | 2750*800*1100 | 280 | 370 |
| CZJ-2400 | 2400 | 2900*700 | 3150*800*1100 | 310 | 410 |
| CZJ-3200 | 3200 | 3700*700 | 3750*800*1100 | 400 | 510 |
