Stone Machine
CNC Router Stone Engraving Machine
  • CNC Router Stone Engraving MachineCNC Router Stone Engraving Machine
  • CNC Router Stone Engraving MachineCNC Router Stone Engraving Machine
  • CNC Router Stone Engraving MachineCNC Router Stone Engraving Machine
  • CNC Router Stone Engraving MachineCNC Router Stone Engraving Machine
  • CNC Router Stone Engraving MachineCNC Router Stone Engraving Machine

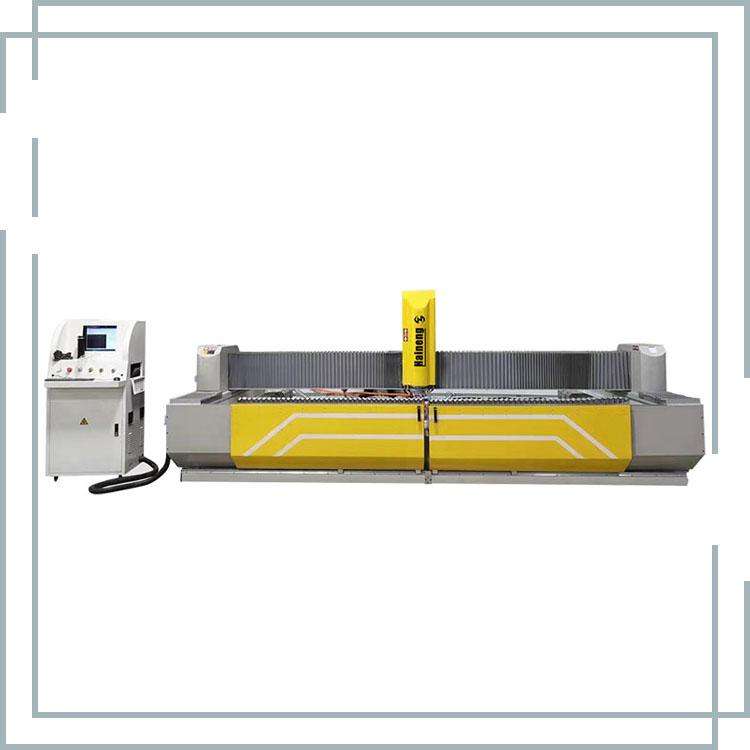

CNC Router Stone Engraving Machine

Model:SKZ-M16

Xinhaineng is a proficient manufacturer and supplier of CNC Router Stone Engraving Machine in China. If you're searching for the CNC Router Stone Engraving Machine at an affordable price, get in touch with us right away!

CNC router stone engraving machine is an automated mechanical equipment controlled by a computer, which can perform CNC engraving processing on various materials, such as wood, plastic, glass, marble, metal, etc. It usually consists of three parts: control system, mechanical part and tool. CNC router stone engraving machine uses high-speed electric spindle, servo motor, pneumatic and water cooling devices and other equipment to accurately control the movement and processing depth of the tool to achieve high-precision engraving and cutting.



Advantages of CNC router stone engraving machine:


1. High precision and high efficiency: CNC numerical control engraving machine is capable of high-precision and high-efficiency engraving, and its accuracy can reach 0.01 mm, which can meet the needs of various fine processes.

2. Automated operation: CNC numerical control engraving machine can automatically complete the processing process through computer programs, thereby reducing the labor intensity and processing time of the operator and improving work efficiency.

3. Cutting of multiple materials: CNC numerical control engraving machine can cut a variety of materials, including stone, marble, granite and concrete. It can produce flexible and diverse architectural decorations, columns, patterns and decorations, etc.

4. High-complexity manufacturing: CNC engraving machines can manufacture highly complex products, such as engraving complex three-dimensional patterns and three-dimensional models.

5. Remote monitoring and maintenance: CNC engraving machines can also be remotely monitored and maintained. Through the Internet control system, processing can be checked at any time.


Product Parameters


Stone CNC Machining Center (Automatic Tool Change)

Type

unit

SKZ-M16

Shape width

mm

5200

Shape Length

mm

2600

Shape Height

mm

1800

 Size width of Exercise itinerary

mm

3000

Size Length of Exercise itinerary

mm

1300

Size height of Exercise itinerary

mm

300

Airway velocity parameters

mm/min

20000

Machining speed parameters

mm/min

1000-6000

Total Power Parameters

kw

15

Operating Voltage Parameters

v

AC380

Motor

/

Customized 7.5KW Tool Changer Spindle

Motor speed

rpm/min

3000-8000

Control system

/

M16 Export Edition

Tool Change Type

/

Waterproof design of 16 knife storehouse

Control cabinet

/

Independent cabinet

Frequency conversion type

/

Customized Vector Frequency Converter

Driver type

/

Customized Servo System

Fixed mode

/

Vacuum chuck


Application equipment: high-speed milling, cutting, edging, and polishing equipment developed for the slab countertops, quartz stone countertops, and marble tabletop processing industries.

Equipment function: rock slab drilling, edging, special-shaped processing; European-style edge special-shaped edging of countertops, back round bottom, countertop overflow, countertop basin, Taichung basin opening, special-shaped island, bathroom cabinet, dining table, TV cabinet , Coffee table countertops.

Basic processing: The equipment adopts integral steel pipe welding and annealing treatment. The processing mother machine is a Japanese Mazak five-axis CNC gantry milling machine, which effectively guarantees the replacement of the equipment and the processing accuracy.

Configuration substitution: The core machinery and electrical components are all imported or domestic first-line brands, which effectively guarantees the operational stability and quality of the equipment.

Fool-style operation: The control system is independently developed by own software department, and the equipment can achieve fool-style operation, which effectively avoids the problem of high entry biology caused by the low quality of the practitioners.

Processing quality assurance: This Stone CNC machining center adopts 16 tool magazines for automatic tool change, which effectively reduces manual labor intensity and avoids manual operation errors. The automatic compensation function greatly improves the processing quality of the workpiece.

It is the first choice for high-end countertop processing plants, especially slate processing plants!






Processing process




One-step molding of countertops



Six core functions
High standard equipment accuracy, user-friendly design experience

1. Round bottom arc
Easy-care water-repellent technology saves time compared to traditional production methods
2. Grinding seams
Combined with dust-free installation technology, the seams can be perfectly connected

3. Drain sink
Bring owners a better experience, more choices and more possibilities
4. Grinding Shaped Edges
Simplify the processing process, smoother production, and linearly increase efficiency

5. Countertop middle and lower basin
Reduce labor intensity and improve pot hole production standards
6. Special-shaped customization
Support direct import of CAD, effectively reduce costs in combination with labor


Packaging & Shipping
