Stone Machine
Marble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine
  • Marble Polishing MachineMarble Polishing Machine

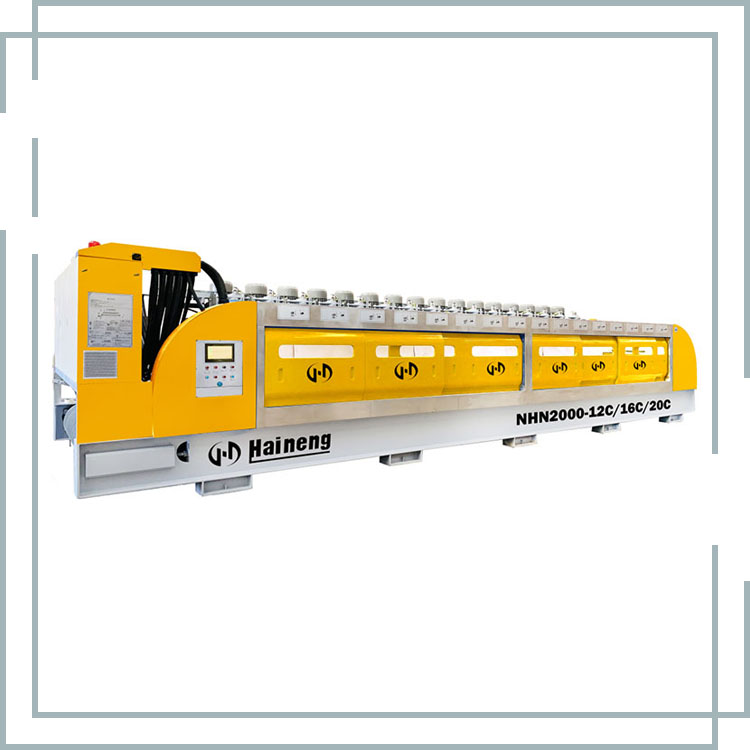

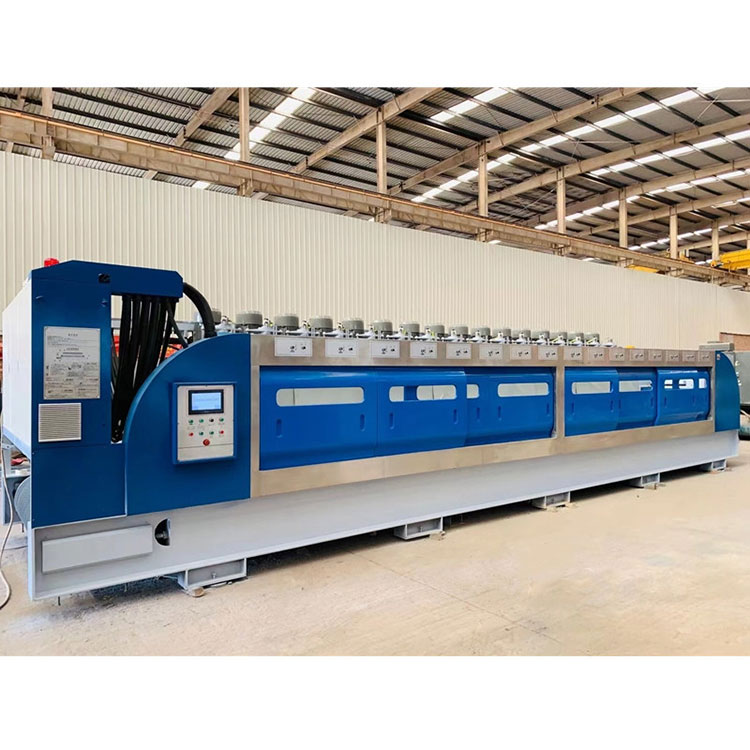

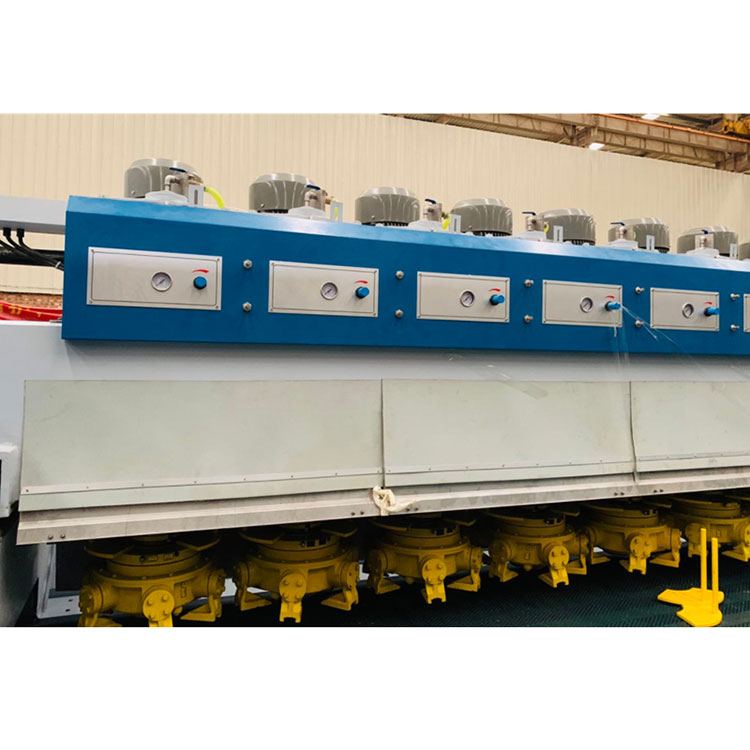

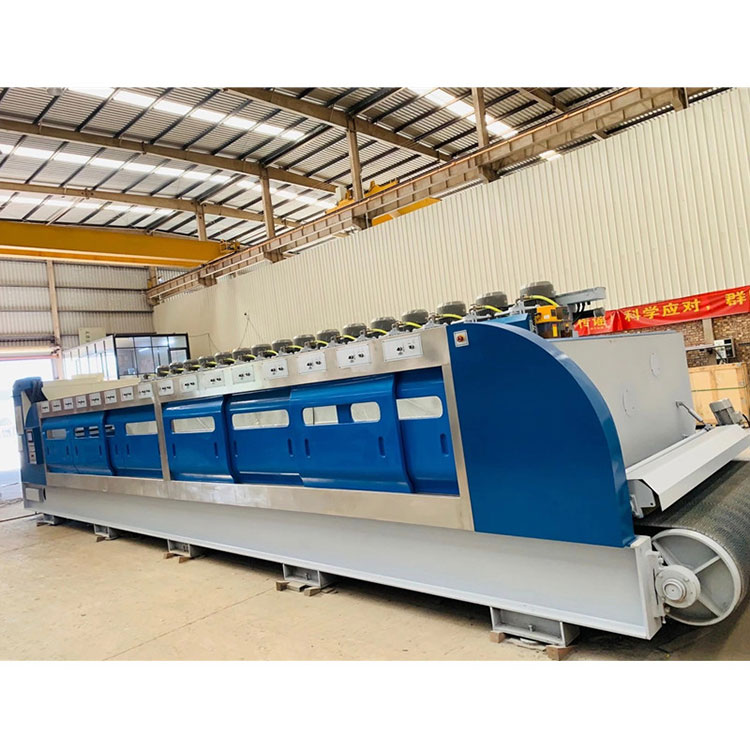

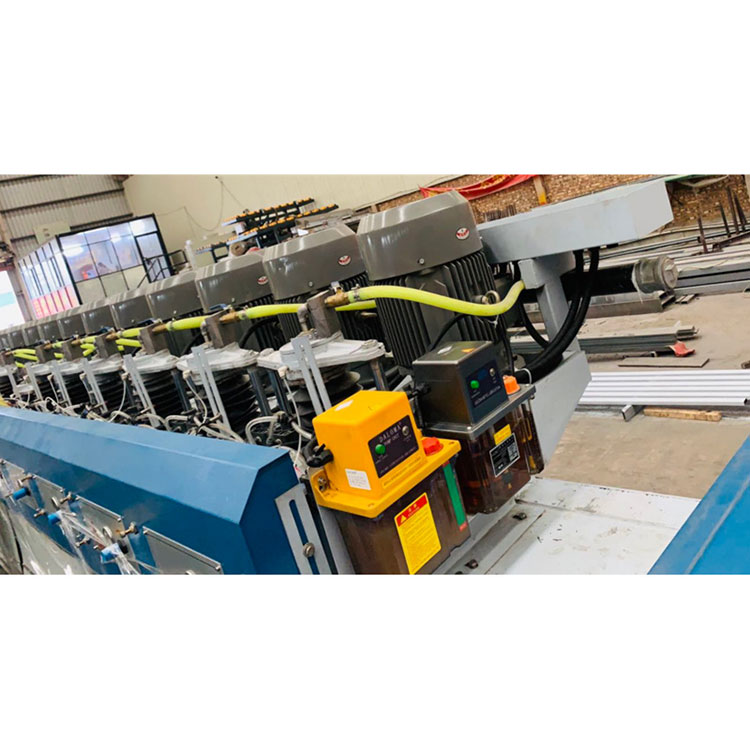

Marble Polishing Machine

Model:DLM-2000-12C

DLM-2000-16C

DLM-2000-18C

DLM-2000-20C

One of Chinese manufacturer of Marble Polishing Machine, offering excellent quality at a competitive price, is Xinhaineng. Feel free to get in touch. Marble polishing machine is a multifunctional machine that can quickly complete different processes such as slag removal, leveling, grinding, and polishing of stone floors, floors, and floors.

Marble polishing machine is a multifunctional machine that can quickly complete different processes such as slag removal, leveling, grinding, and polishing of stone floors, floors, and floors. Marble polishing machine is a multifunctional machine that can quickly complete different processes such as slag removal, leveling, grinding, and polishing of stone floors, floors, and floors.


This Automatic Polishing Machine adopts foreign advanced design and automatic controlling with the demand of domestic market. it has the advantage of stable performance , high output and low failure rate . The machine select standard casting iron , steel , the brand electronic appliances, bearing and other components from Germany, Japan and Taiwan.


The controlling system of the machine adopts PLC terminal controlling, and sets the parameter by the LCD touch - screen as the man - machine interface. During running, this equipment has designed The indicator of failure and the alarm system of abrasive raw consumption. This machine is suitable for grinding and polishing large plate of marble or granite. The conveying beer advancing speed and the cross beam moving speed are controlled by transducers. The pressure of disc and the grinding width can be adjustable freely within the setting area. The machine can automatically identify the shape of plates. Every disc (grinder ) can automatically life up and down according to the identified shape and track records the grinding of plates at the same time. This Model can choose six claws flicked grinder or marble disc. The whole machine are produced by standardized production. It's performance reaches the domestic advanced level .

Features of marble polishing machine:


1. There are classic fixed high and low speeds (no frequency conversion, large torque of coarse grinding and fine grinding discs, and stable grinding force).

2. Two grinding discs of different sizes can be flexibly replaced, with sufficient weight (enough grinding disc pressure), suitable for the needs of different construction processes such as stone and flooring.

3. The front detachable and flexible operating handrail is suitable for grinding and polishing at the foot and large area, and the grinding disc can be zero-distance contact with the foot.

4. Suitable for various natural and artificial stone floors; epoxy floors, cement floors; epoxy terrazzo, epoxy diamond floor leveling, grinding, slag removal, cleaning and other construction process requirements.

5. Humanized design: front electric lifting device. The rear vertical force machine horizontal adjustment device makes each point on the grinding disc evenly ground, and the grinding disc (block) is horizontally lost. The removable movable handrail is easy to operate.

6. Buffering and vibration reduction device: A compression spring is installed between the output rotating shaft and the grinding disc. When the grinding disc encounters a large cut or unevenness, the machine will be greatly impacted. At this time, the spring will play a buffering and vibration reduction role, which can keep the machine grinding smoothly, thereby reducing the labor intensity of the operator.

7. Movable handrail design: When constructing a large area, the operator can use the handrail to operate the machine easily and freely, and when grinding and polishing to the corner position, the handrail can be removed for operation.


Product Parameters


Type

Unit

DLM-2000-12C

DLM-2000-16C

DLM-2000-18C

DLM-2000-20C

Quantity of polishing head

pcs

12

16

18

20

Useful working width

mm

600-2100

600-2100

600-2100

600-2100

Useful working thickness

mm

15-50

15-50

15-50

15-50

Transfer speed

mm/min

0-3500

0-3500

0-3500

0-3500

Water consumption

m³/h

22

25

26

28

Motor power of grinding head

kw

9/11/15

9/11/15

9/11/15

9/11/15

Total power

kw

137

181

203

225

Overall dimension(L×W×H)

mm

9600×3200×2300

11600×3200×2300

12600×3200×2300

13600×3200×2300

Gross weight

T

24

27

28

29


Processing process

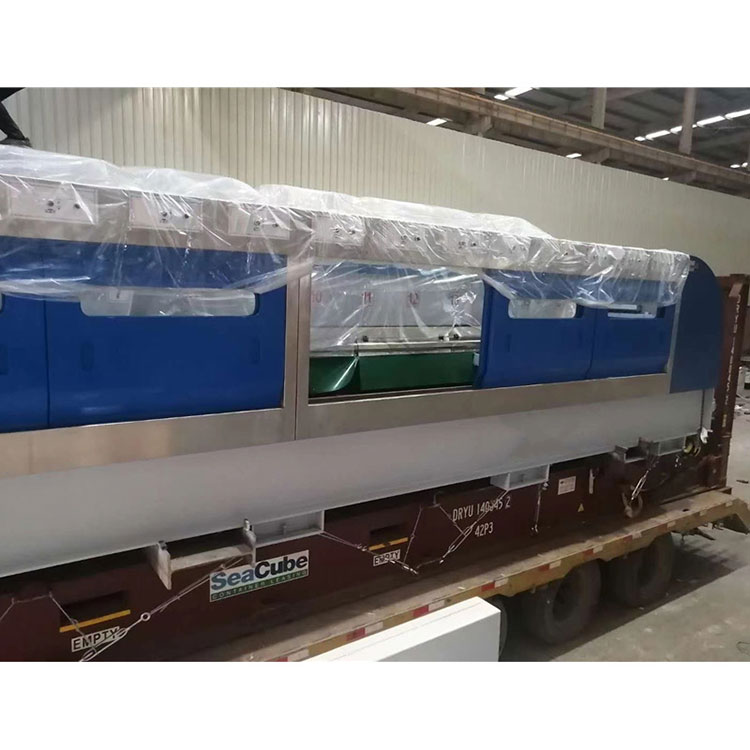

Packaging & Shipping
