Granite Polishing Machine

Model:ZDM-1200/08

ZDM-1200/12

ZDM-1200/16

ZDM-1200/20

ZDM-1200/24

As the professional manufacturer, Xinhaineng would like to provide you Granite Polishing Machine. And Xinhaineng will offer you the best after-sale service and timely delivery.

Granite polishing machine is a stone processing equipment used for polishing and grinding the surface of granite. They are available in different sizes, shapes and models. These machines use diamond abrasive pads and polishing powders to create a smooth, shiny and reflective surface on granite. They are commonly used in countertop, floor and wall installation projects in the construction and renovation industries. These machines are used to polish and grind granite slabs to achieve a smooth and shiny surface. The granite polishing machine process involves grinding, honing and polishing.

The first step in the process of polishing granite is grinding. This is done by using diamond abrasives of different grit sizes to remove any rough spots, scratches or stains on the surface of the granite slab. The grinding process is followed by honing to smooth the surface and prepare it for polishing. The polishing process involves polishing the surface of the granite slab using resin-bonded diamond abrasive discs to achieve a high-gloss finish. The polishing action is usually performed in a circular motion, and the machine has a built-in water supply system to keep the polishing surface cool. Granite polishing machine is available in different types, including single-head machines and multi-head machines. Single-head machines are ideal for small-scale stone processing, while multi-head machines are preferred for large-scale production. Granite polishing machine is highly automated and efficient, which increases productivity and reduces labor costs. These machines are also equipped with safety features such as emergency stop buttons and sensors that shut down the machine in case of operating faults.


Product Parameters


Type

unit

ZDM-1200/08

ZDM-1200/12

ZDM-1200/16

ZDM-1200/20

ZDM-1200/24

No. of grinding head

pcs

8

12

16

20

24

Main motor power

kw

7.5

7.5

7.5

7.5

7.5

Total power

kw

71

101

132.5

170

194

Grinding head diameter

mm

Φ200

Φ200

Φ200

Φ200

Φ200

Grinding plate width

mm

1200

1200

1200

1200

1200

Grinding plate depth

mm

10-60

10-60

10-60

10-60

10-60

Beams swing speed

m/min

3-35

3-35

3-35

3-35

3-35

Speed into the boards

m/min

1-4

1-4

1-4

1-4

1-4

Cooling water pressure

Mpa

0.1-0.15

0.1-0.15

0.1-0.15

0.1-0.15

0.1-0.15

Air supply pressure

Mpa

0.85

0.85

0.85

0.85

0.85

Water consumption

m³/h

12

18

25

31

37

Dimension                   (L×W×H)

mm

5300×3200×2500

6600×3200×2500

7900×3200×2500

9200×3200×2500

10500×3200×2500

Total weight

kg

12000

13000

14000

15000

16000


Processing process

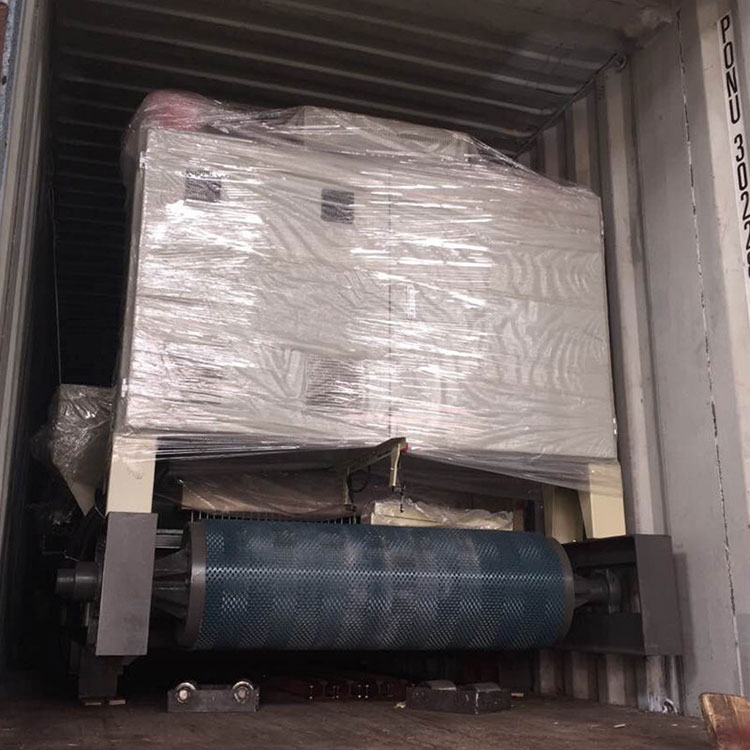

Packaging & Shipping
