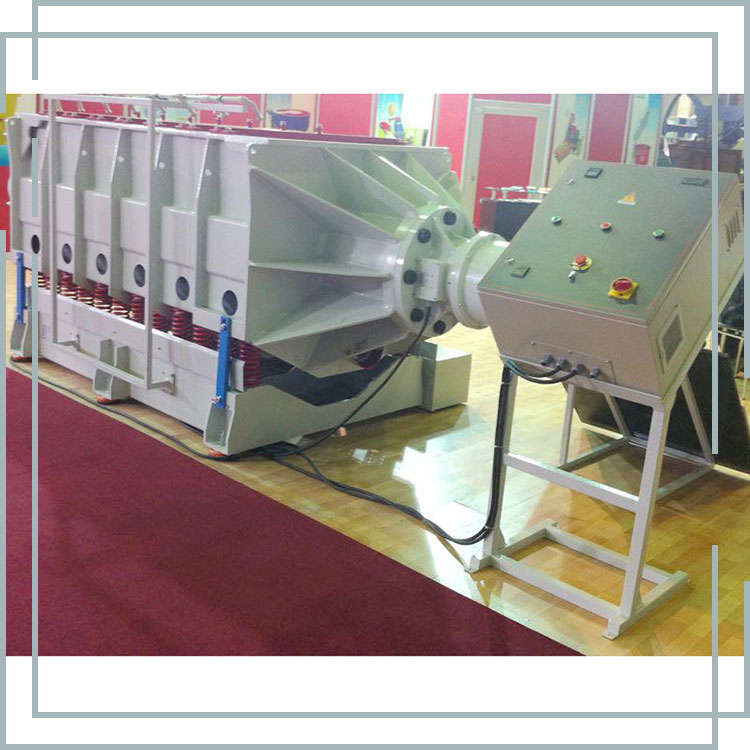

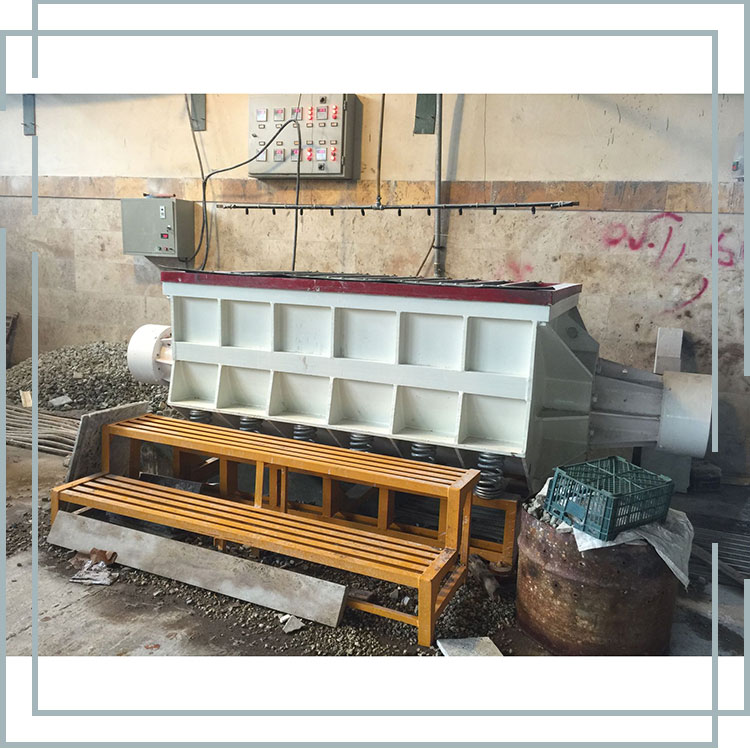

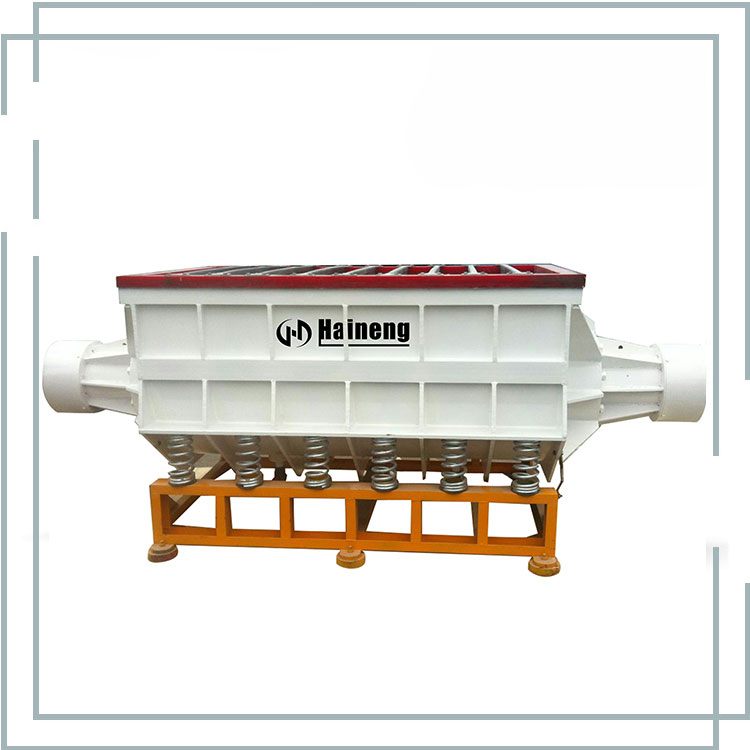

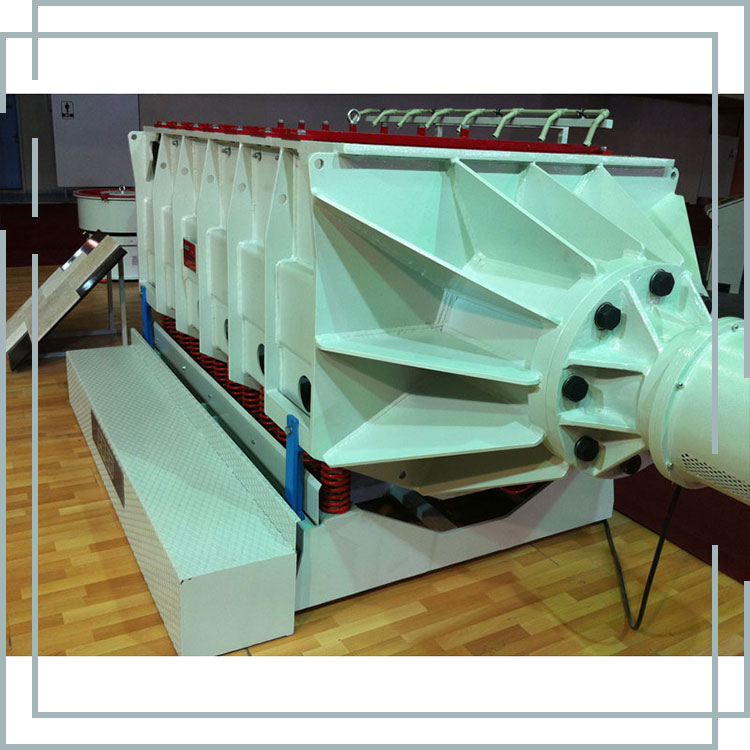

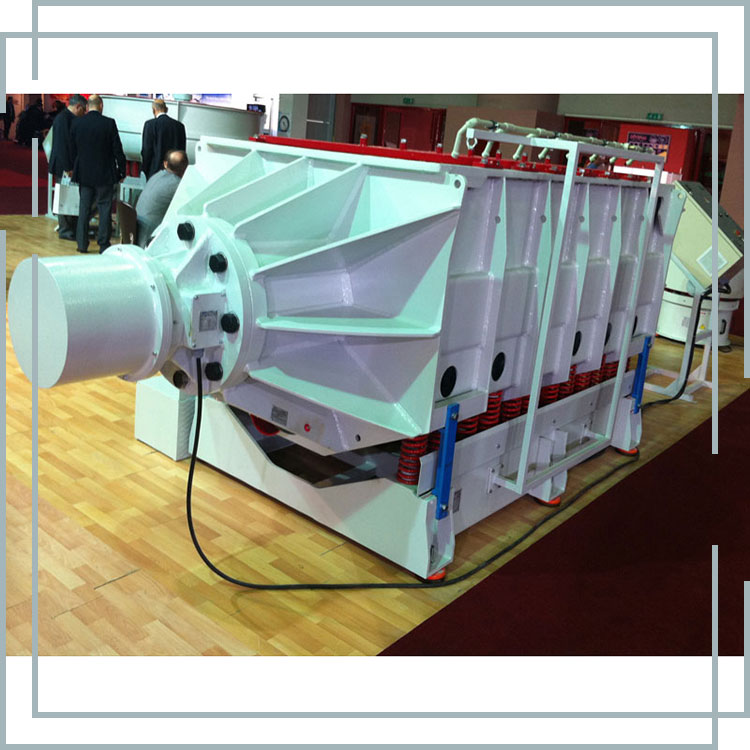

Being a proficient manufacturer, Xinhaineng aims to offer you top-notch Linear Type Vibratory Finishing Machine. We promise to provide you with the best after-sale support and prompt delivery.

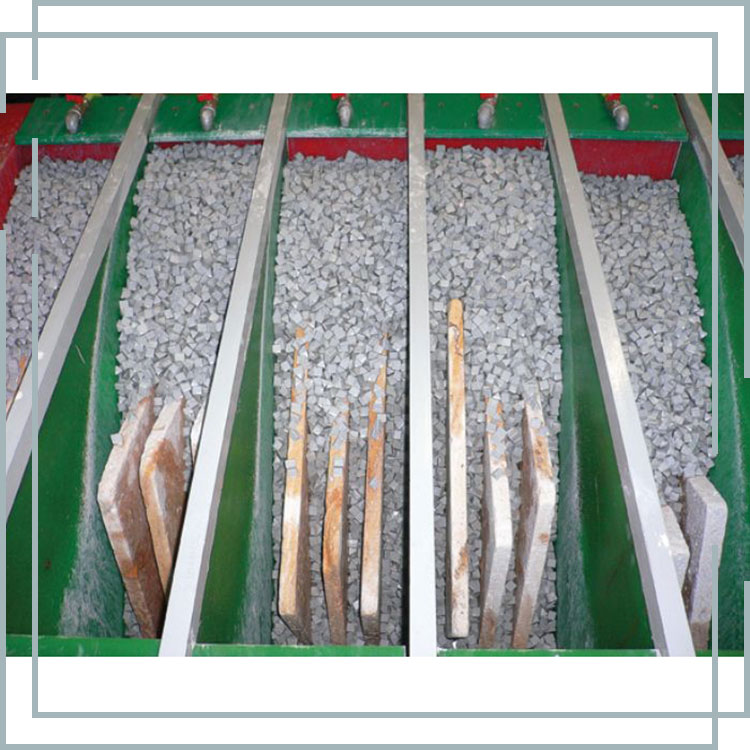

This Linear Type Vibratory Finishing Machin is used for marble, granite, limestone,mosaic stone and sandstone processing to antique and aged looking stone.
Ideal for cornering, antiquing and polishing tiles.
Polyurethane ensures a long service life.
Partitions can be removed to match different sizes.
Two vibration motors provide uniform vibration.
Frequency converter controls the tumbling motor.
1.Suitable for large size tiles.
2.Polish completely.
3.Vibration speed is controlled by frequency converter.
4.Working time preset.
5. Long working life.
|
Type |
unit |
Linear type vibration machine |
||
|
Model |
|

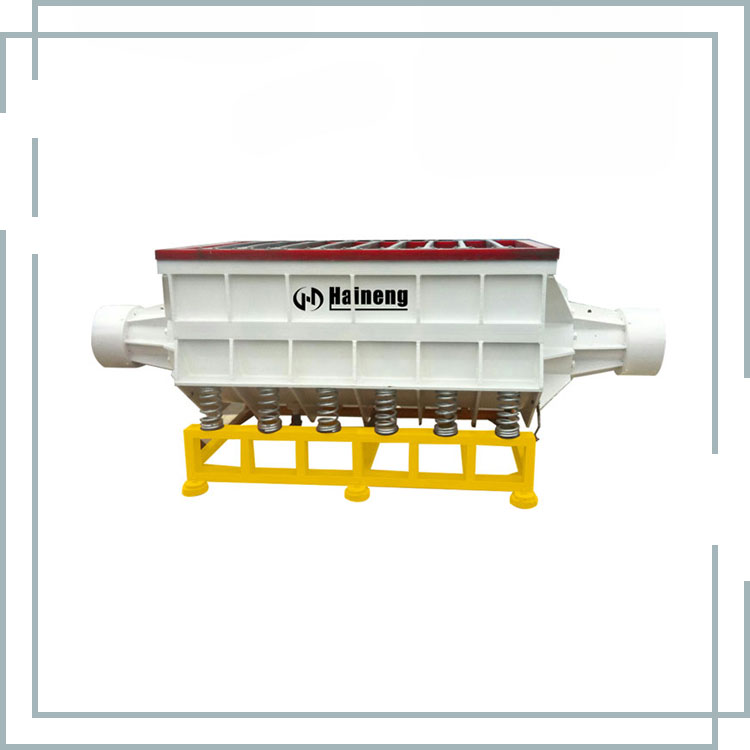

ZMY-F1000 |
ZMY-F2600 |
ZMY-F1880 |
|
Inside tank size |
|
1000*40*460 |
2600*600*550 |
1880*1100*960 |
|
Total motor power |
kw |
2*1.1 |
2x5.5 |
2x7.5 |
|
R.P.M. |
|
1400 |
1400 |
1400 |
|
Net volume |
L |
200 |
900 |
2000 |
|
Dimension(LxWxH) |
mm |
1880*550*860 |
3840*750*950 |
3480*1450*1700 |
|
Weight |
kg |
320 |
865 |
4000 |
|
Max processing size |
cm |
40*40 |
60*60 |
90*60 |
|
Electric Power Required
|
|
3PHS 380V 50Hz |
3PHS 380V 50Hz |
3PHS 380V 50Hz |
