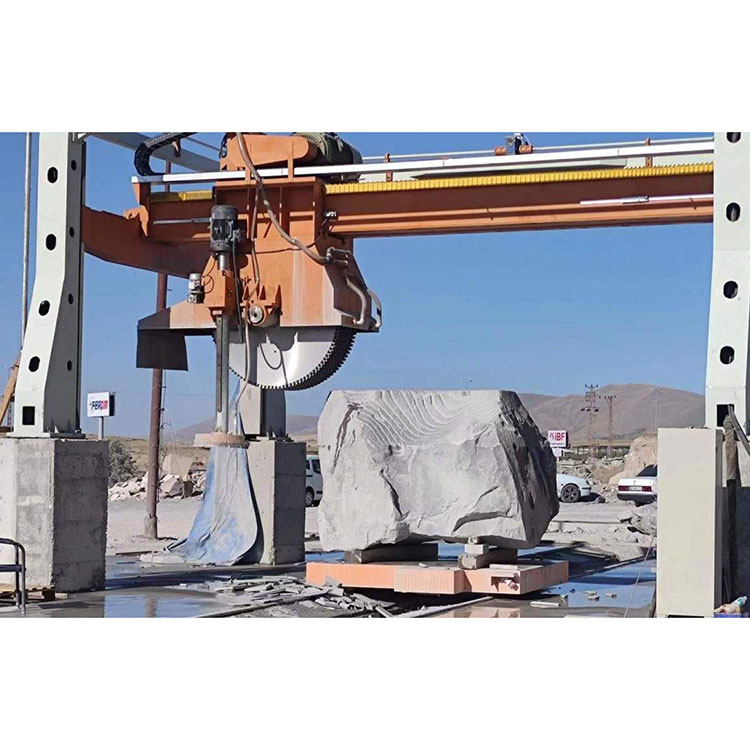

Granite Bidirectional Cutting Machine

Granite bidirectional cutting machine is one of the stone machinery and equipment, mainly used for the production line of granite thin plates. The machine adopts a programmable fully automatic electrical control system and a hydraulic transmission actuator to cut granite rough materials into plates of certain thickness specifications.

Granite bidirectional cutting machine has the following features and functions:

‌1. Cutting specifications‌: The maximum stone specification that can be cut is usually 3200×2000×2000mm, the diameter range of the vertical cutting saw blade is Φ900～Φ1300mm, and the diameter of the horizontal cutting saw blade is between Φ400～Φ450mm.

‌2. Power and weight‌: The total power is 99kw, the overall dimensions of the entire machine are approximately 6720×5160×5160mm, and the total weight is approximately 21000kg.

‌3. Application areas‌: This machine is widely used in granite thin slab production lines, especially in the production of granite thin slabs for paving and wall finishing, such as 1 cm thick slabs for walls, 1.2 to 1.5 cm thick slabs for paving.

Technical Data
