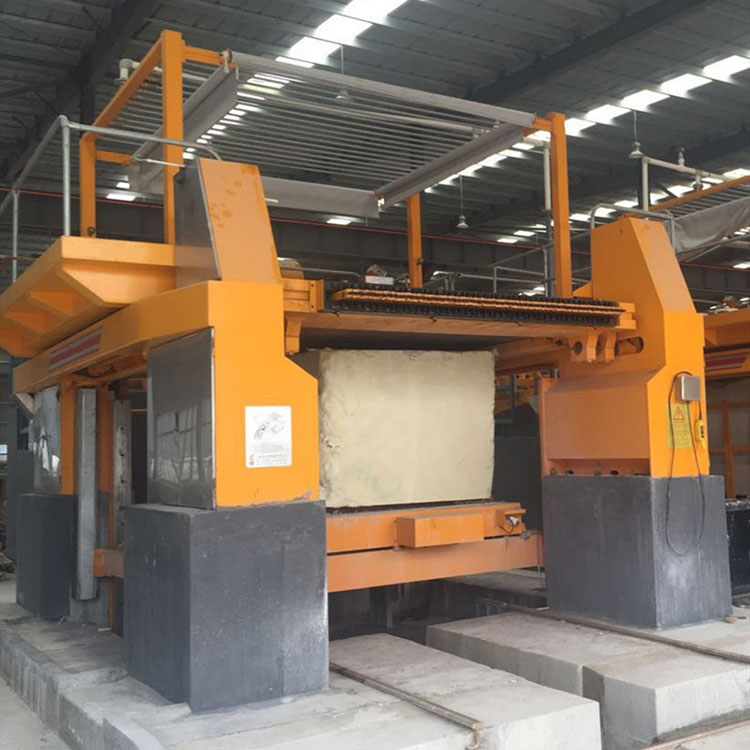

Gangsaw for marble is a machine used to cut and shape marble blocks. It utilizes multiple blades mounted on a single flat frame, which move up and down in a reciprocating motion. The movement of the blades is driven by an electric motor, and water is used during the cutting process to cool the blades and remove debris. Gangsaw for marble is commonly used to produce marble slabs for countertops, floors, and other decorative applications. In order to turn marble blocks into beautiful stone slabs, cutting is required, and Gangsaw for marble is the machine equipment used for this purpose. Secondly, Gangsaw for marble can also be used for the processing of marble slabs. Processing marble slabs into various shapes of components or decorations requires cutting, grinding, polishing and other processing processes, which requires the use of a series of different machines and equipment, of which Gangsaw for marble is one of them. In addition, Gangsaw for marble can also be used in the manufacture of marble products. Marble is a very durable stone that can be used for many years without damage. Therefore, it is widely used in architecture, sculpture and other fields. In these applications, Gangsaw for marble is needed to cut, process, carve, etc. marble.
| Marble gangsaw | ||
| Type | Unit | AYH-800 |
| Max block size(LXWXH) | mm | 3200X2000X2000 |
| Main motor power | kw | 110 |
| Dimensions(LXWXH) | mm | 11900X5060X4690 |
| Auxiliary motor power | kw | 7.5 |
| Speed | cm/h | 8-32 |
| Stroke of the blades | mm | 800 |
| Blades length | L/MIN/BLADE | 10 |
| Installed No. Of blade | pcs | 80 |
| Total weight | ton | 55 |
| Standard configuration: | ||
| 2 | pcs | Motorized block trolley, dimensions:3200X2050mm, 1.5kw, load weight 35 ton |
| 1 | pcs | Electrical control board |
| 1 | sets | Hydraulic tensioner and oil pump |
| 80 | sets | Hydraulic hangers for blades(19mm) |
| 160 | pcs | Blades spacers(22mm) |
| 4 | pcs | Splint bar in block car |
| 1 | pcs | Dynamitic spanner |
