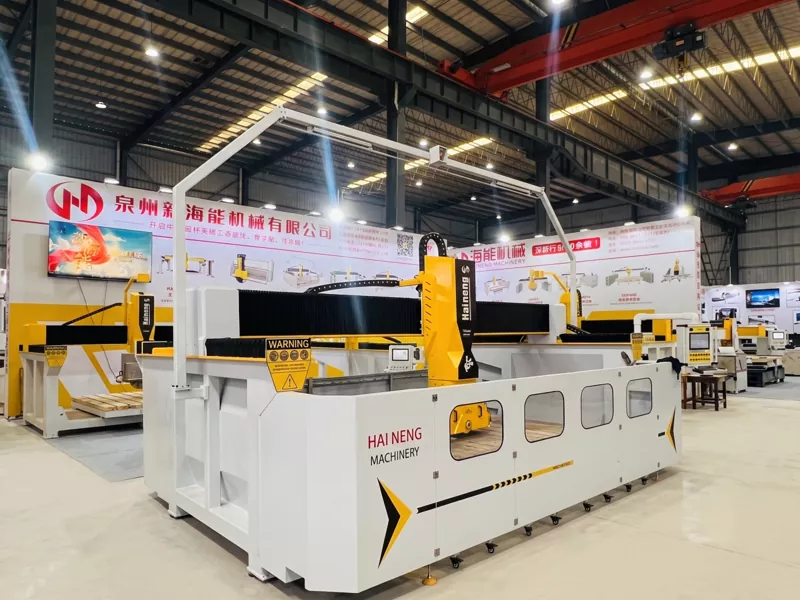

Think of a 5-axis CNC bridge saw as an all-in-one automated cutting center. It coordinates five interpolated motions at once: three linear movements (X, Y, Z) plus a C-axis head that spins a full 360° and an A-axis blade that tilts up to 90°.
Old-school 3-axis saws do straight cuts fine. But the second you need a 45-degree miter or a curved sink hole, your operator has to stop, manually spin the slab, or drag out an angle grinder. A heavy-duty 5-axis machine changes that completely. It handles dimension slicing, miter joints, arc moldings, and sink cutouts in one continuous program without anyone needing to move the slab by hand.
• Less Scrap: Computerized nesting cuts slab waste down by roughly 15%.
• Higher Output: Runs up to 40% faster than manual cutting setups.
Cutting 30mm Taj Mahal Quartzite or ultra-hard sintered stone will punish a flimsy machine. When a standard blade tilts to 45 degrees, the spindle flexes, the blade vibrates, and you end up with ugly micro-chipping right along the visible joint.
RTCP (Rotational Tool Center Point) kinematics solves this. The control system tracks the exact physical tip of the diamond blade in real-time while the head rotates (0° to 360°) and tilts (0° to 90°).

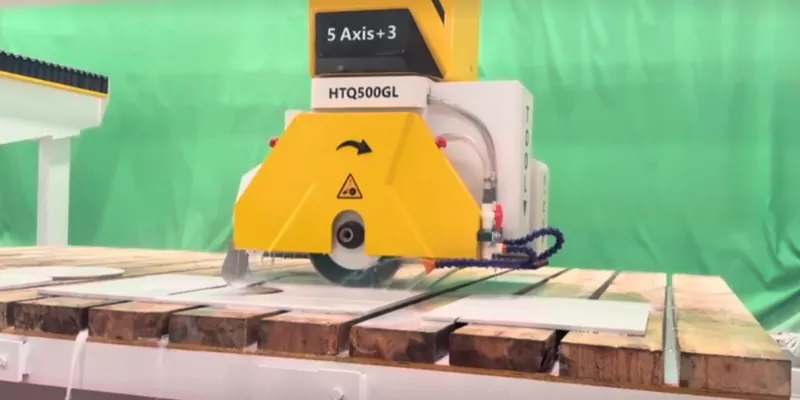

Paired with a heavy 18.5 kW (HTQ500GL) or 22 kW (HTQ700GL) water-cooled motor turning up to 5,000 RPM, the blade cuts smooth and steady. No chatter marks. No ruined waterfall edges. Just crisp, clean 45° joints every single time.
• Slab Slicing: Quick, automated straight cuts for standard tiles and kitchen counters.
• 45-Degree Miters: Tilts smoothly from 0° to 90° for clean waterfall island seams.
• No Blade Over-Run: Cuts tight internal square corners cleanly.

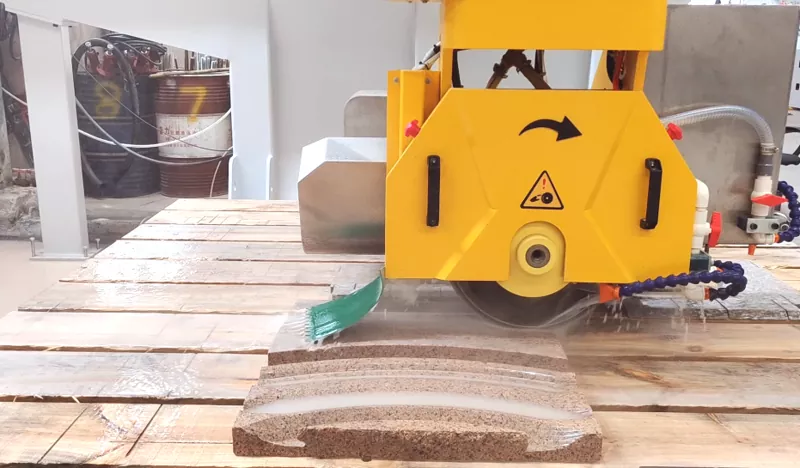

• Curves & Ovals: Continuous C-axis rotation carves smooth circular tables, octagons, and curved vanity tops.
• Integrated Router Bit: The center of the main spindle holds a dedicated milling cutter.
• Sink Cutouts: The saw blade does the straight boundary cuts, then the milling bit drops down to router clean radius corners, tap holes, and drain grooves. No need to transfer the heavy slab to a separate CNC work center.
1. Top Camera for Vein Matching: Takes a photo of your marble slab so you can visually match veins across miter joints in the software before making a single cut.
2. Pneumatic Vacuum Suction Cups: Mounts right next to the blade to pick up and nudge cut pieces out of the way so the blade doesn't hit them on the next pass.
3. Automatic Slab Thickness Probe: Reads real-time thickness variations across uneven slabs and adjusts Z-depth on the fly.
4. Auto Tool Setter: Measures your blade and milling tool lengths with one touch after a tool change.
5. Enclosed Safety Doors: Keeps water spray contained and shields shop workers from noise.
Answer: Yes. The mono-frame bed, gantry, and hydraulic table are designed specifically to load right into a single 20GP shipping container without costly breakdown.
Answer: No. The touchscreen system includes preset geometric shapes (rectangles, sink cutouts, circles). For custom jobs, just load a .dxf file from a USB drive or Wi-Fi.
Answer: Every machine comes with a built-in Wi-Fi module. If you run into a software issue, our technicians log in remotely to diagnose, adjust settings, or update software free of charge.
