The producers of Xinhaineng in China offer high-quality products, you are welcome to purchase straight high-quality 5 Axis Engraving Machine at a good price.

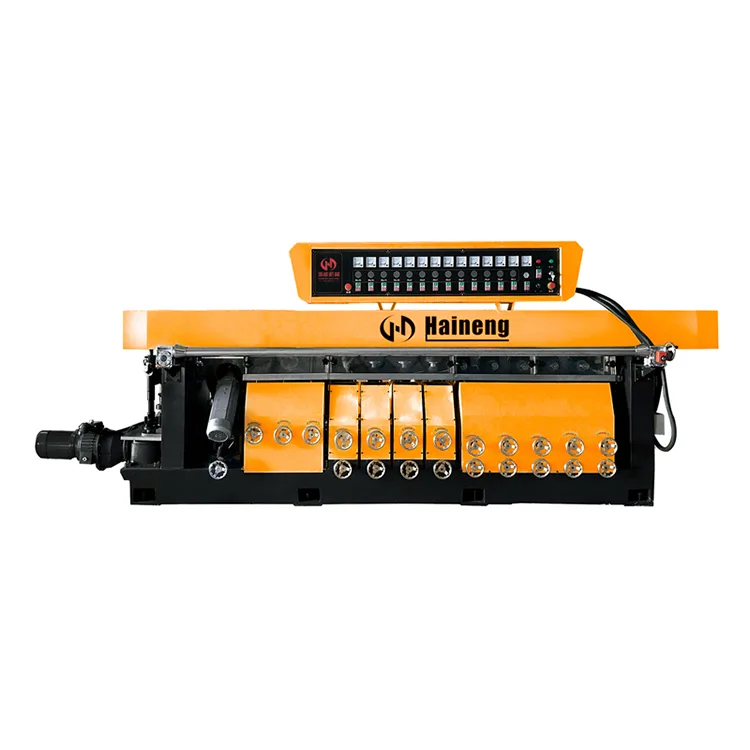

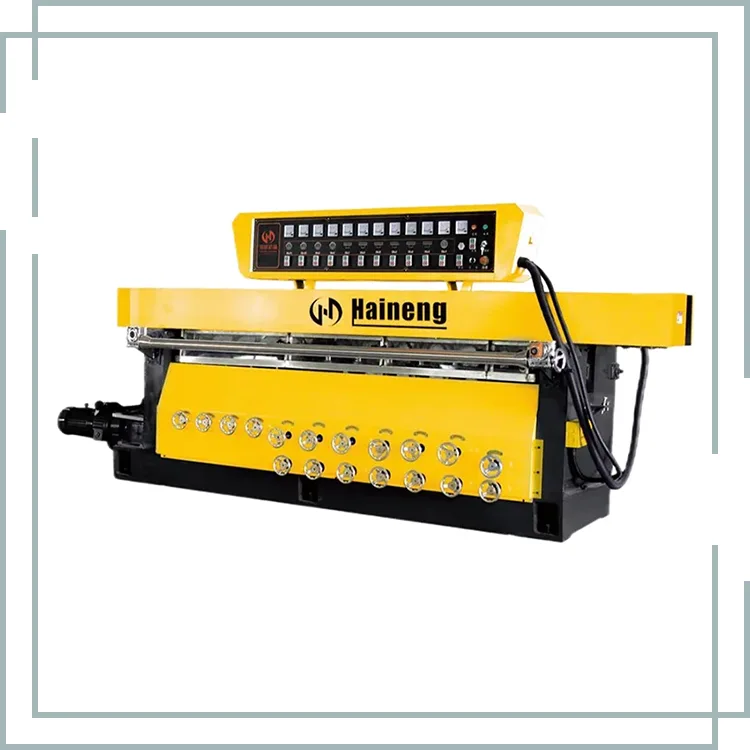

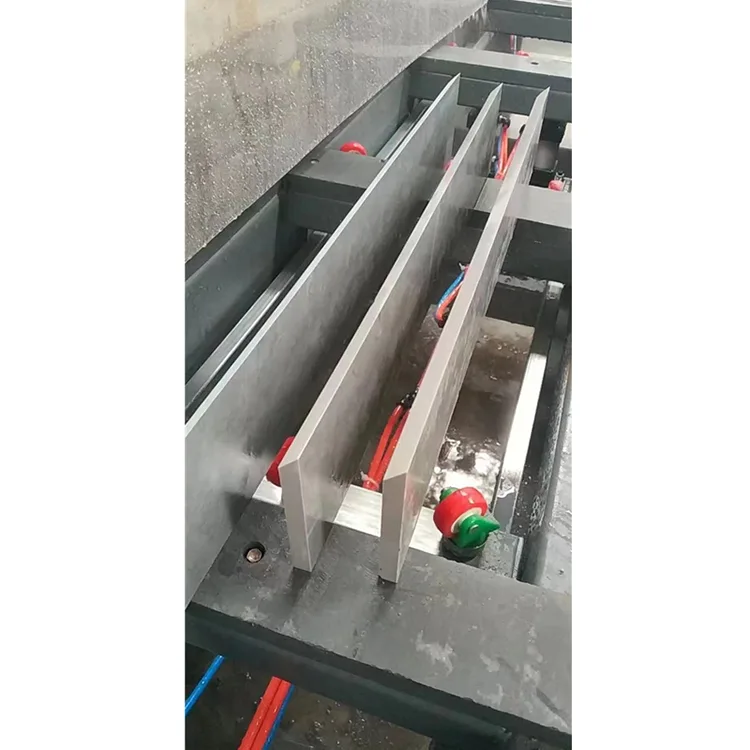

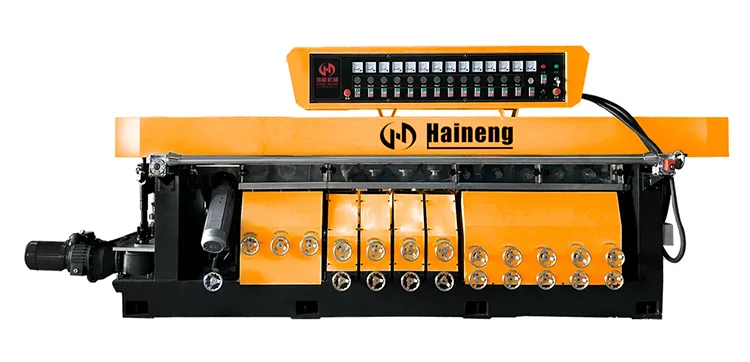

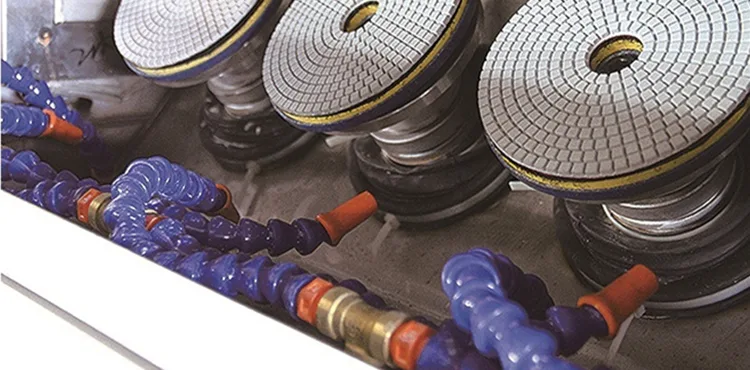

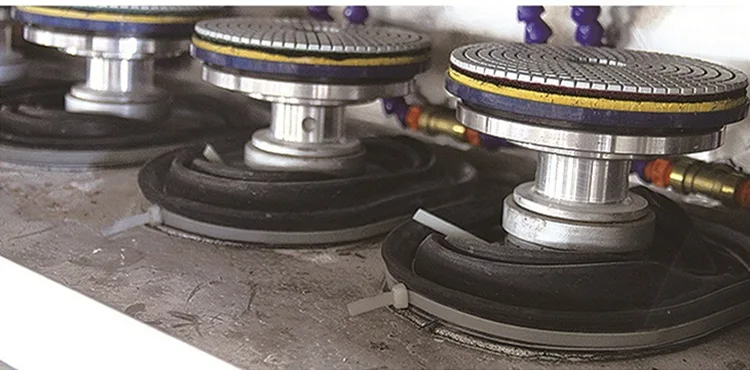

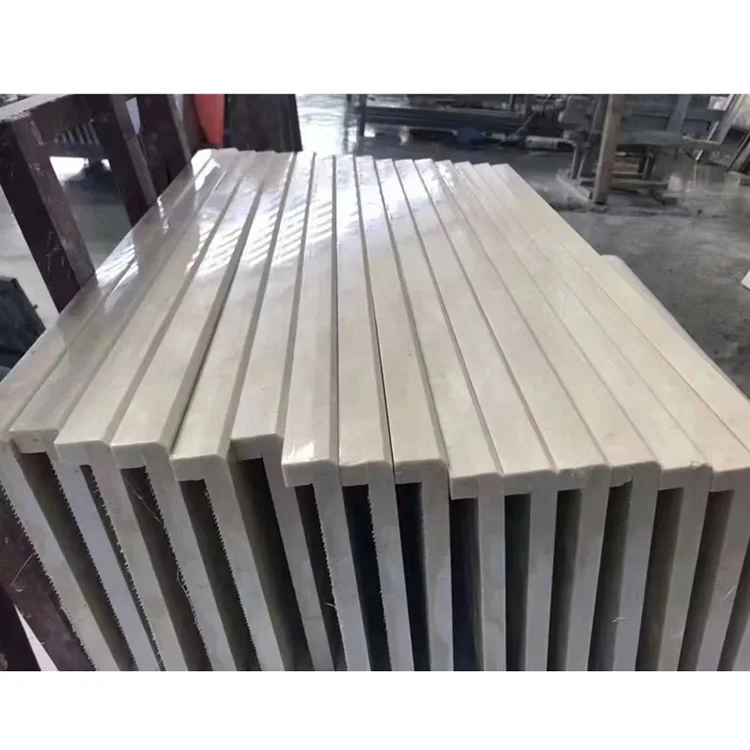

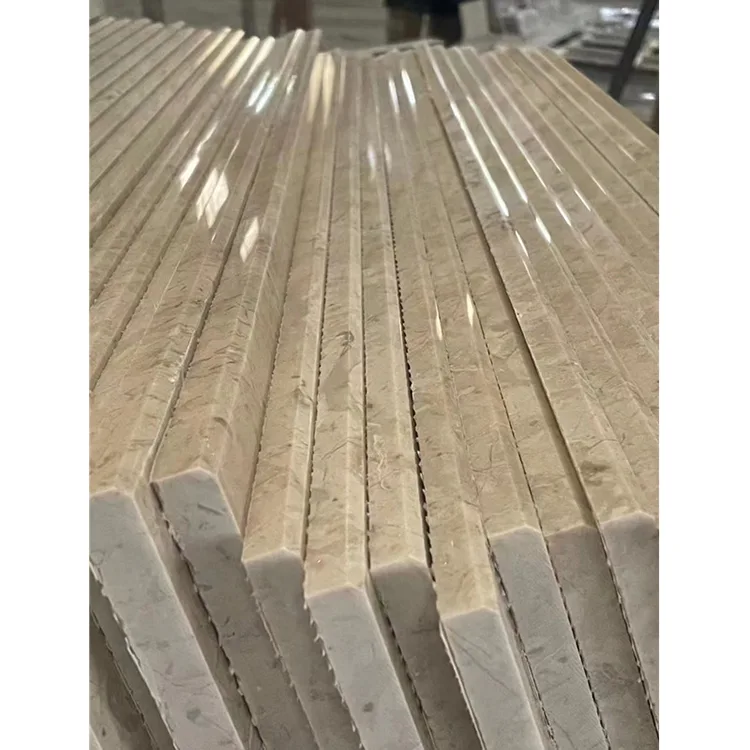

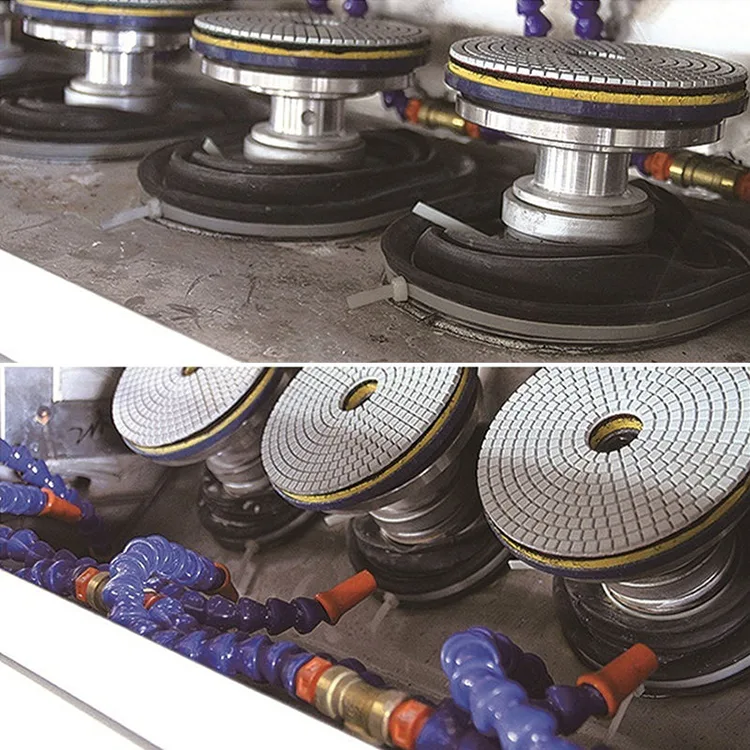

This machine is used to polish the straight edge and 45 ° bevel, slot and polish inside a slot of stones. Skirting,planning thickness and polishing for various irregular shaped edge (such as rounded edge, French edge, ogee, etc,) are also within the working range of this machine. The polishing wheel works in a way that interchanges snailed dish ( attached with fiber polishing disc with abnormality wheels(electroplate/sintering/ resin wheels), which is convenient for assembling/disassembling. Processed stones have high glossiness (lighter than the slab face)consistent angles and lines. The machine has a low rate of malfunction, and the operating of the machine is easy to learn, All of these makes it a second to none type of machine for a stone deep processing factory. Polishing Machine
|
Type |
Unit |
DZP-9 |
DZP-11 |
|
Working width |
mm |
100-2000 |
100-2000 |
|
No.of polishing wheel |
pcs |
9 |
11 |
|
Working speed |
m/min |
0.8-5 |
0.8-5 |
|
Gross power |
kw |
30.7 |
36.7 |
|
Gross weight |
kg |
3000 |
3500 |
|
Overall size (L*W*H) |
mm |
6500×1300×2000 |
7500×1300×2000 |
|
Remark |
|
polishing; 4×Front bevel4. All manual
|
6×Straight edge polishing; 4×Front bevel +1×Back bevel All manual
|
