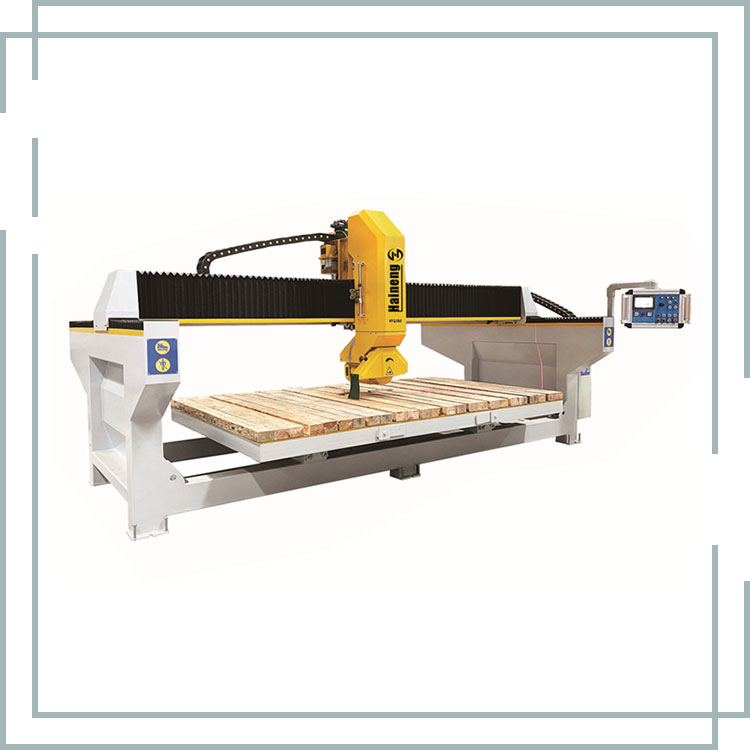

Stone Bridge Saw

Model:HTQ350A
HTQ350B
HTQ350C
HTQ350D

One of the Chinese companies offering Stone Bridge Saw for wholesale is Xinhaineng. For you, we can offer better pricing and competent service. Should you be intrigued by Stone Bridge Saw, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.

Send Inquiry

Product Description

Stone bridge saw, also known as stone cutting machine or bridge cutting machine, is a specialized machine widely used in the stone fabrication industry. With its advanced cutting technology, this machine is designed to cut and shape large slabs or blocks of natural and engineered stones, such as marble, granite, limestone, and quartz, into different sizes and shapes.

The machine consists of a sturdy bridge-like structure with a diamond saw blade attached to a cutting arm that moves across the bridge. The stone material is placed on the table and then moved into the blade's cutting path by the machine's automated system. The blade rotates at a high speed while water is sprayed onto it to keep it cool and prevent damage. This process provides a more precise cut than that done manually, and it saves time and effort as well.

Stone bridge saws come in various sizes and configurations to suit different stone cutting needs. Smaller machines are used for cutting tiles and small pieces, while larger ones are used for producing large-scale projects such as countertops, building facades, and monument carving.When selecting a stone bridge saw, it is crucial to consider factors such as the size of the material to be cut, the type of stone to be cut, and the desired cutting speed and accuracy. Some other features to consider are cutting depth, blade diameter, power requirements, and safety features.In summary, stone bridge saws have revolutionized the stone fabrication industry by making cutting and shaping stones faster, easier, and more accurate.

Product Parameters

Product type	Unit	HTQ350A Basic type	HTQ350B Chamfer type	HTQ350C Basin type	HTQ350D Four-sided chamfer
Blade diameter	mm	350	350	350	350
Worktable size	mm	3200×2000	3200×2000	3200×2000	3200×2000
Max. cutting size	mm	3200×2000×50	3200×2000×50	3200×2000×50	3200×2000×50
Max. chamfer size	mm	3000×1800×50	3000×1800×50	3000×1800×50	3000×1800×50
Saw blade horizontal rotation angle	°	0-90°	0-90°	0-90°	0-90°-180°-270°
Chamfer orientation	°	None	0-90°	0-90°	0-90°-180°-270°
Saw blade inclination angle	°	None	0-45°	0-45°	0-45°
Turnover angle of worktable	°	0-85°	0-85°	0-85°	0-85°
Rotation angle of worktable	°	Default: None（Optional）	Default: None（Optional）	Default: None（Optional）	Default: None （Optional）
Main motor power	kw	15	15	15	15
Host frequency conversion		Optional	Optional	Optional	Optional
Total power	kw	20.2	20.2	20.2	21
Water Consumption	m³/h	3.5	3.5	3.5	3.5
Gross weight	kg	3500	3500	3500	3500
Overall dimensions	mm	5000×3000×2400	5000×3000×2400	5000×3000×2400	5000×3000×2400

Processing process

Packaging & Shipping
