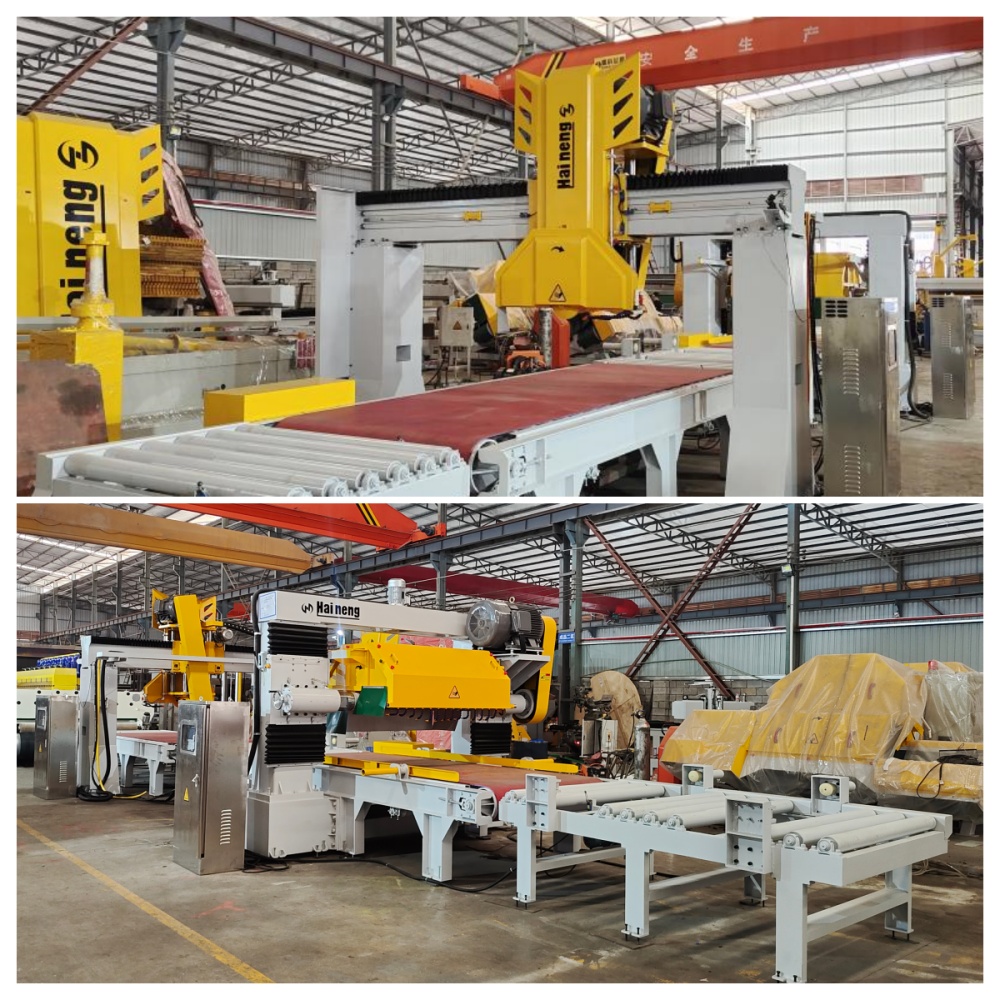

High Efficiency Kerbstone Cutting Machine Line Specifically engineered for materials including granite, marble, engineered stone and cement products, this system is optimised for the mass production of elongated stone elements such as kerbstones. Integrating intelligent control, high-efficiency cutting and cost-saving features. High Efficiency Kerbstone Cutting Machine Line delivers a comprehensive production solution for stone processing enterprises.

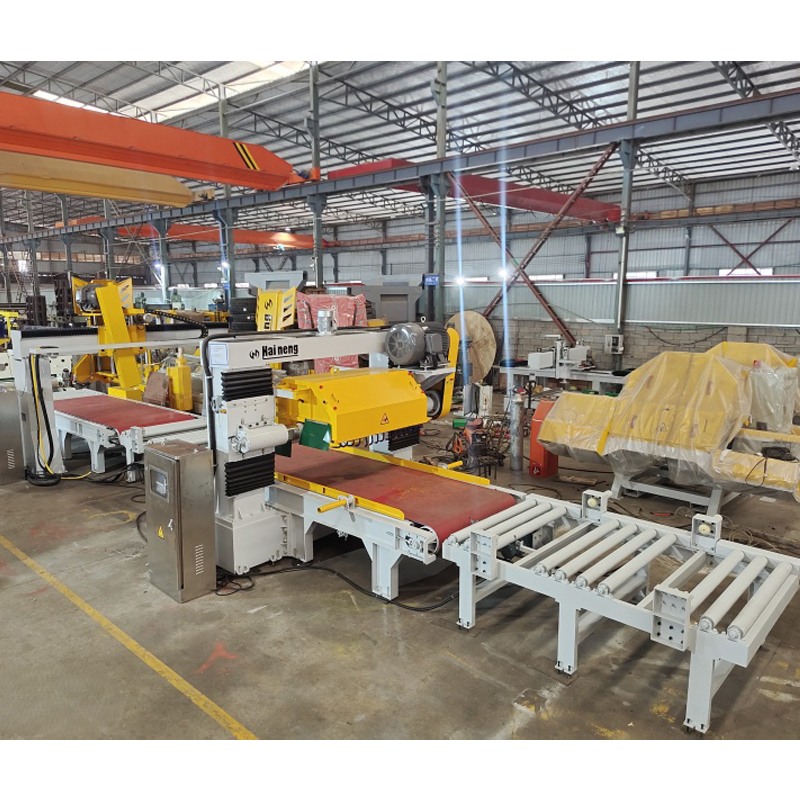

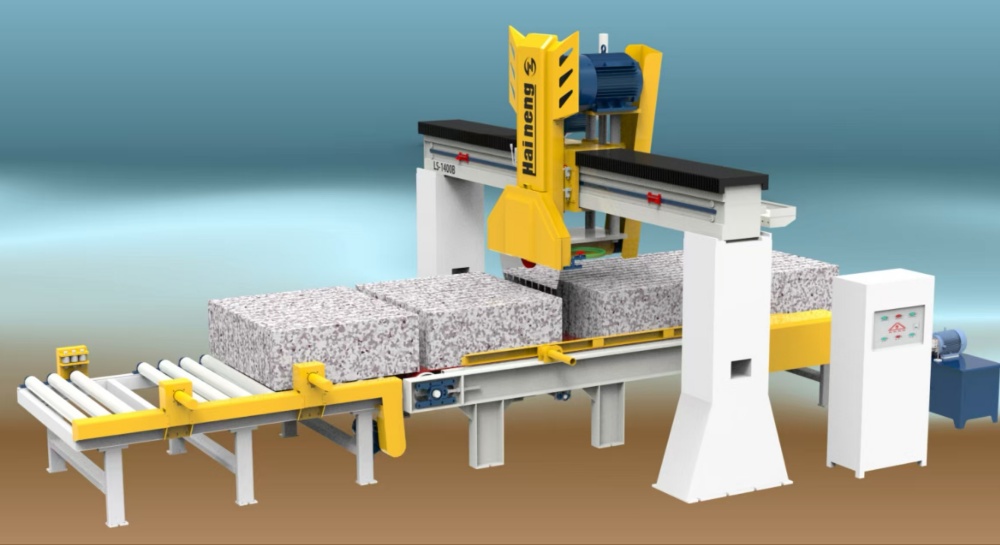

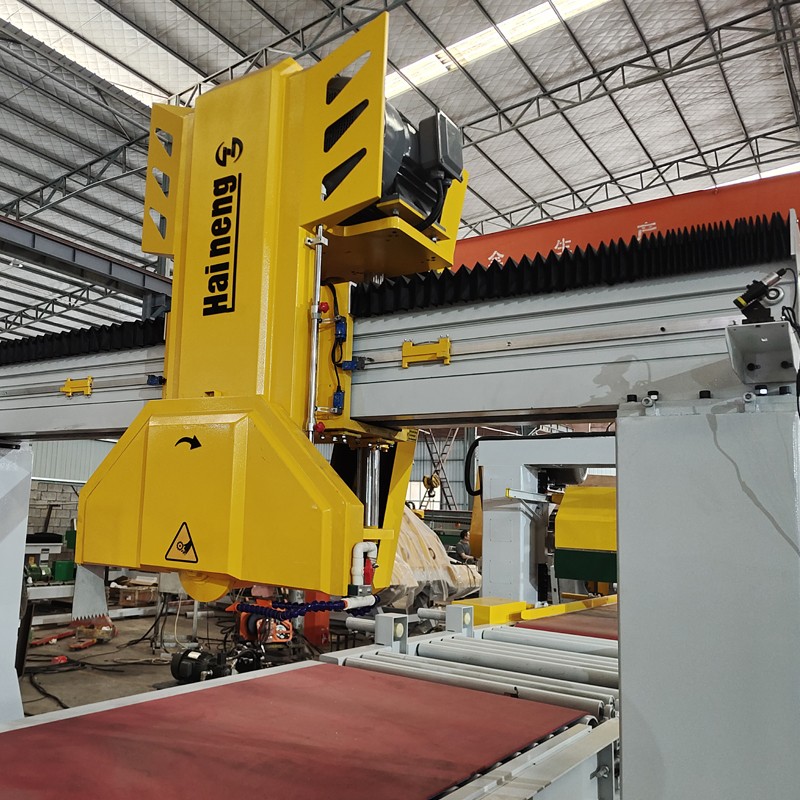

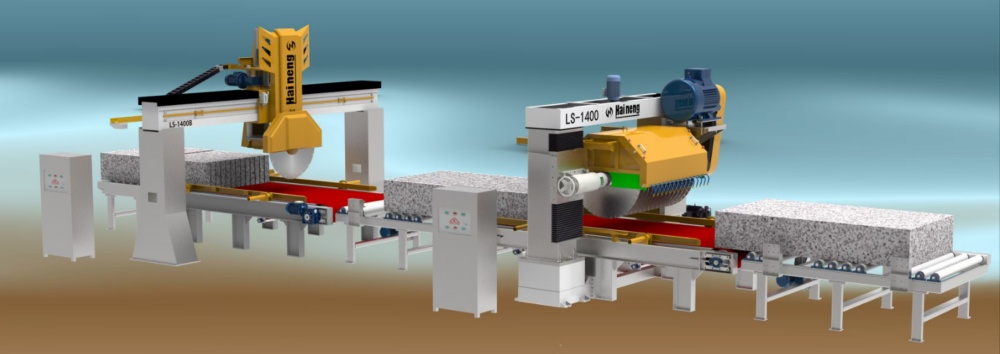

High Efficiency Kerbstone Cutting Machine Line achieves a fully automated process from raw materials to finished products: Longitudinal automatic feeding - precise positioning to specified width, Longitudinal automatic cutting - efficient cutting to specified width, Transverse automatic feeding - precise conveying to specified length, Transverse automatic cutting - completion of cutting to specified length, Automatic discharge - transfer to subsequent processing stages.Flexible configuration of subsequent processing equipment for chamfering, surface roughening, polishing and other operations.
Product Advantages：
1.Robust and durable mechanical structure
Fully welded mainframe: High-strength steel construction, stress-relieved to ensure long-term stable operation
Precision-machined baseplate: Fully welded and machined to specification, guaranteeing perfectly parallel dual rails
Hydraulic lifting system: Entire unit employs hydraulic components for smooth elevation and vibration-free cutting
2.High-efficiency production design

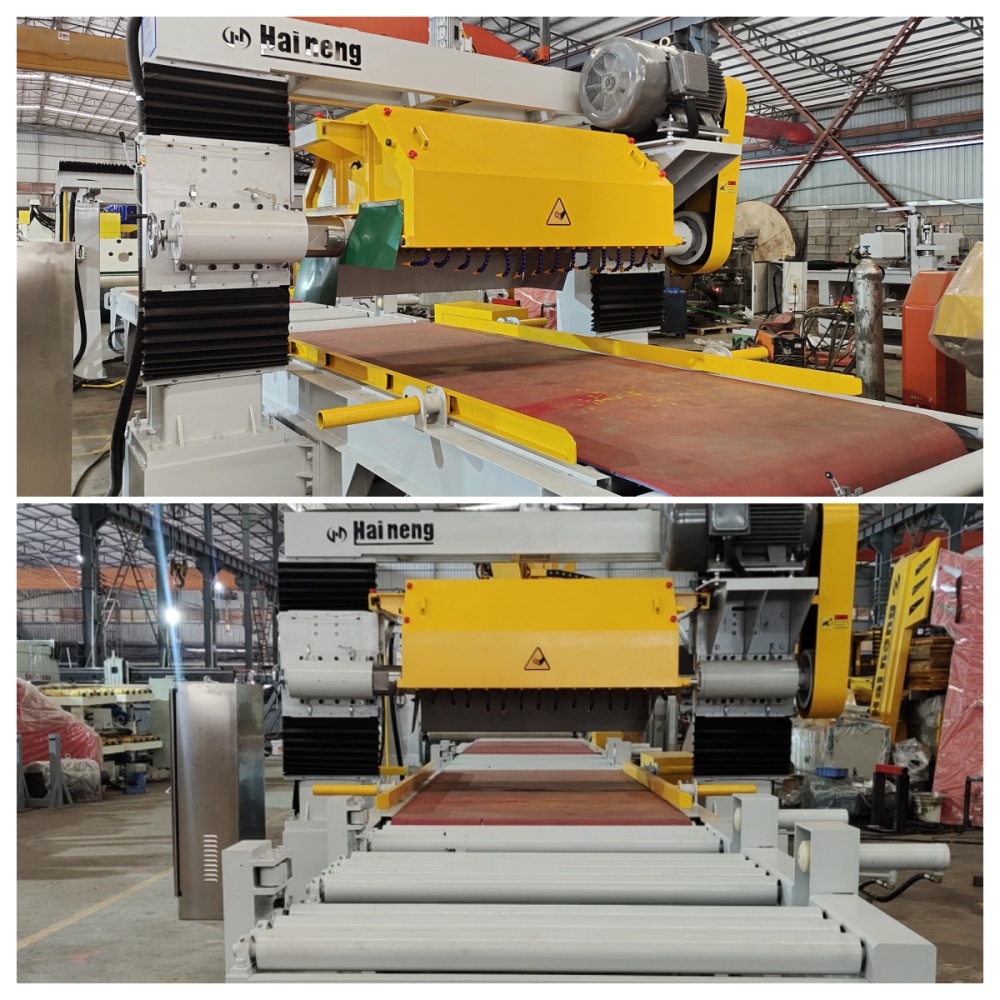

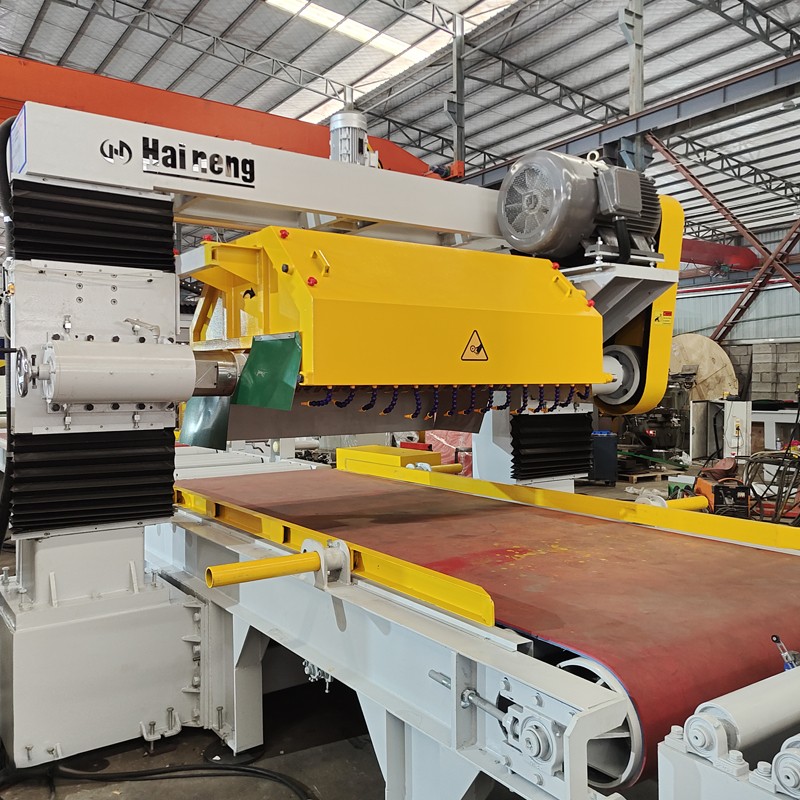

Dual-carriage separation cutting system: Independent operation reduces loading/unloading time, boosting production efficiency by 40%

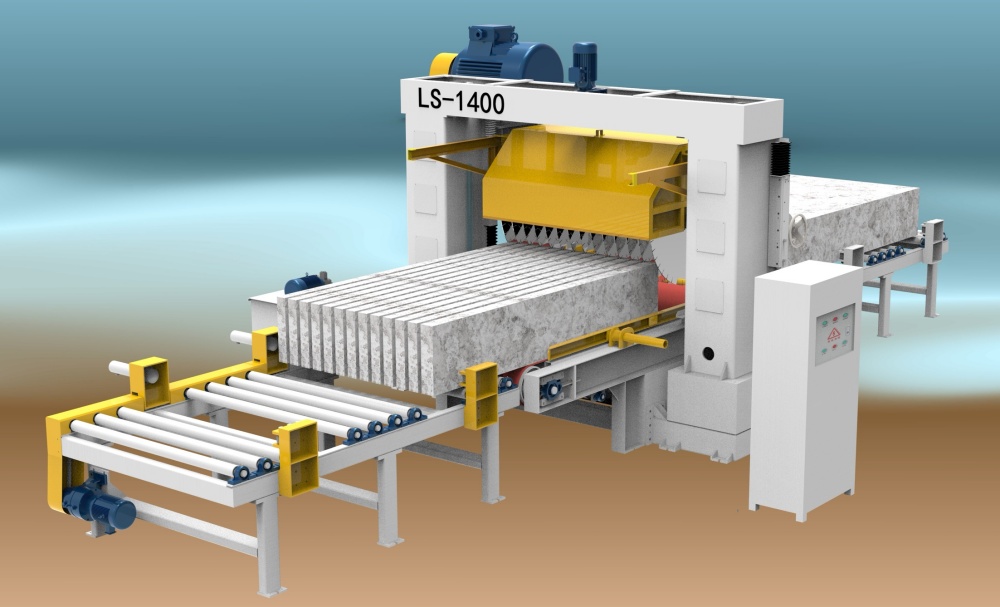

Large-capacity cutting capability: Simultaneously accommodates 10-14 x 1200mm diameter saw blades for multi-piece cutting in a single pass

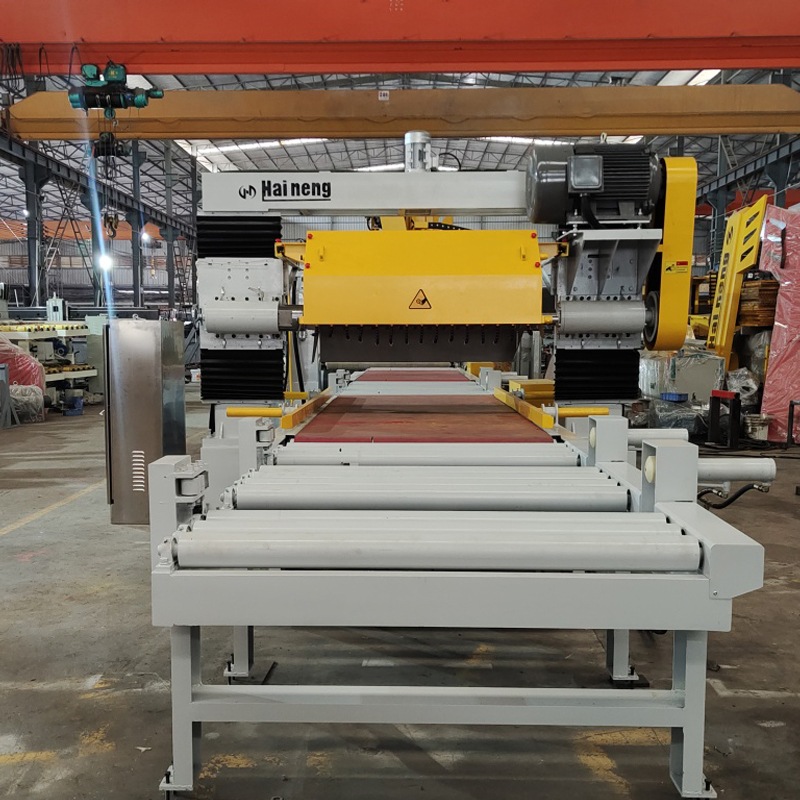

Continuous conveying system: Stone materials automatically transported via roller conveyors between units, eliminating manual handling

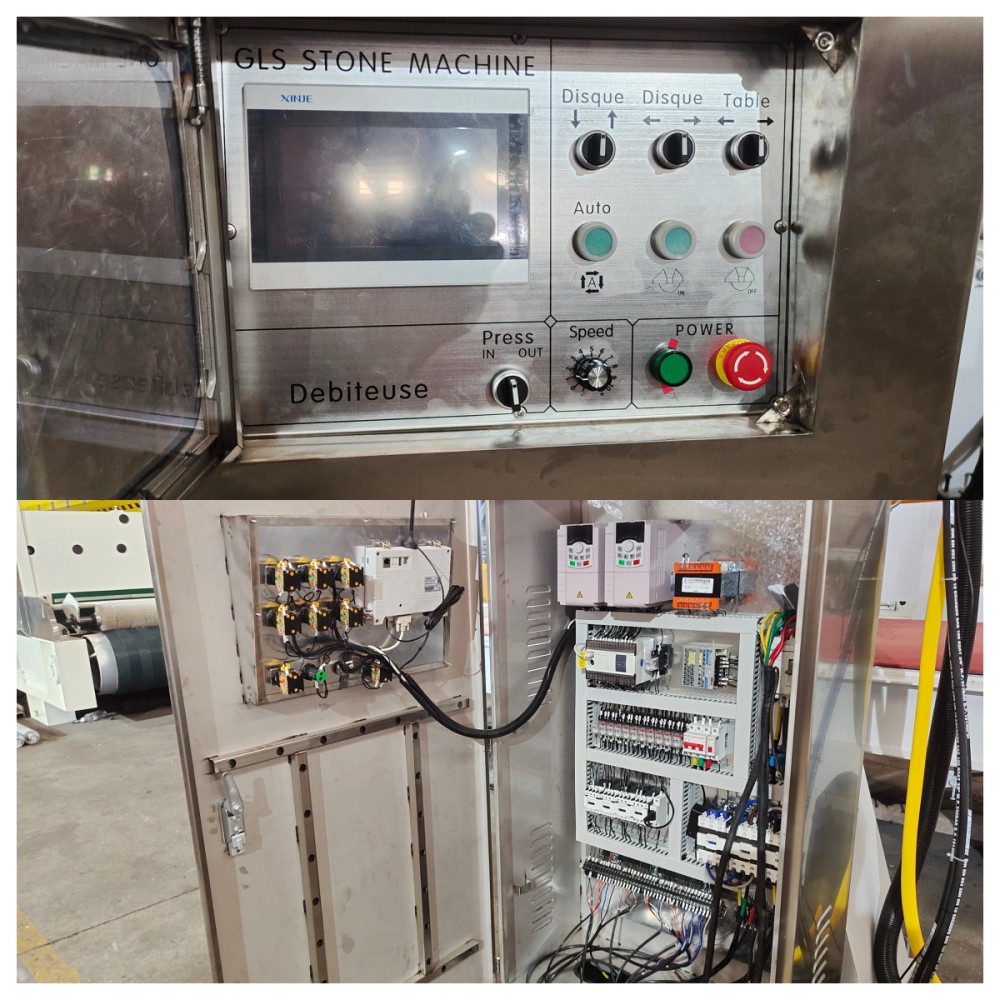

3.Exceptional cutting precisionPLC intelligent control: Precise regulation of cutting path and depth
Template and hydraulic arm coordination: Ensuring consistent results with every cut
Shallow-depth rapid cutting technology: Minimises stone stress whilst enhancing cutting quality
Customisable saw blade configuration: Accommodates various blade diameters to meet diverse cutting requirements
Technical parameters
| Type | Unit | LT1000 |
| Longitudinal (fixed-width) saw blade diameter | mm | 1000 |
| The number of longitudinal (fixed-width) saw blades | mm | 14 |
| Longitudinal (fixed-width) saw blade shaft diameter | mm | 100 |
| Maximum longitudinal (fixed width) working dimensions | mm | 2500*1400*350 |
| Minimum longitudinal (fixed-width) finished product((LxW) | mm | 2500*100 |
| Longitudinal (fixed-width) main motor power | KW | 65 |
| Diameter of the transverse (fixed-length) saw blade | mm | 1000 |
| The number of transverse (fixed-length) saw blades | mm | 1 |
| Lateral (fixed-length) saw blade shaft diameter | mm | 50 |
| The maximum horizontal (fixed-length) working dimension | mm | 2500*1400*350 |
| Minimum horizontal (fixed-length) finished product (LxW) | mm | 2500*100 |
| Horizontal (fixed-length) main motor power | KW | 30 |
| Total power of the whole machine | KW | 103.85 |
| Water consumption | m³/h | 15 |
| Installation external dimensions | mm | 14300*4500*3650 |
| Whole machine weight | Kg | 14000 |
Why choose our high efficiency kerbstone cutting machine line?
Haineng provide comprehensive bespoke solutions: tailored configurations for your specific stone types and cutting width requirements, alongside full-cycle services from installation training to after-sales maintenance. The curbstone cutting machine is a multi-purpose unit capable of simultaneously mounting 10 to 14 saw blades with a diameter of 1200 millimetres for operation.Kerb stone cutting machine is stable and durable, significantly boosting output. Compared to other models on the market with equivalent capacity, equipment investment can be reduced by 20% to 30%, alleviating pressure on corporate capital expenditure.
