Stamping Machine

Model:DKJ-24S3

This stone splitting machine is designed with hydraulic drive to split square column stone into blocks cubes or blocks with rustic look. It is an efficient machine for producing cubic paving stones.

Send Inquiry

Product Description

Main Features

1. Open frame machine model for easy maintenance

2. Made of sturdy cast iron and high-quality components to ensure stability while working.

3. Rapid lifting motion greatly improves work efficiency.

4. Heat treated and hardened high carbon steel chisels produce superior cracks every time.

Product Parameters:

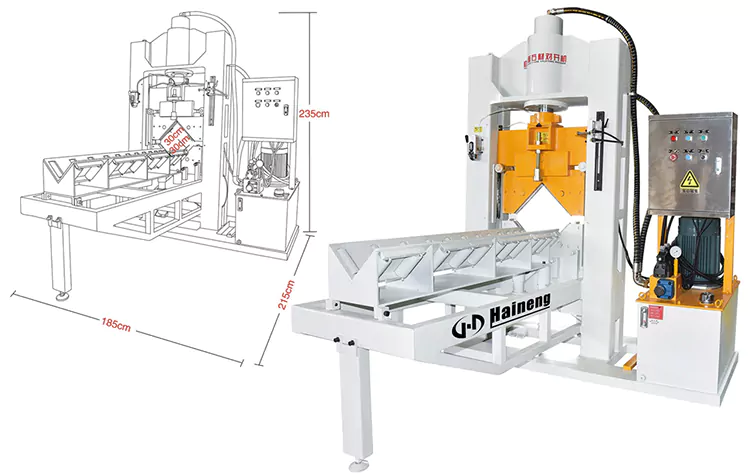

Dimensions(L×W×H)	cm	215×185×235
Weight	T	1.75
Power	kw	7.5
Voltage	V	380
Frequency	HZ	50
Flow Rate	L	25
Pressure	T	80
Blade Feeding Speed	cm/S	5
Max Working Height	cm	30
Standard Processing Size	cm	30×30
Max Working Width	cm	30
Output/Hour	m²	50
Hydraulic Oil Grade	#	46
Oil Tank Capacity	KG	78
Packing Size	cm	190×95×245 125×95×100
Gross Weight	T	1.9

Hot Tags: DKJ-24S3 Stone Splitting Machine, China, Manufacturer, Supplier, Factory
