Automatic Multi Blades Mosaic Tile Cutting Machine

Automatic Multi Blades Mosaic Tile Cutting Machine

Automatic Multi-Blades Mosaic Tile Cutting Machine is a branch of tile cutting machine, which is specially used for cutting mosaic tiles. The tile cutting machine can be divided into electric desktop tile cutting machine, which is a popular and universal equipment in ceramic processing plants. The machine has the advantages of function, high cutting efficiency, high speed, no edge collapse, etc. It can also be divided into cantilever automatic cutting machine, which is suitable for cutting high-end mosaics of various materials, such as ceramics, marble, granite, glass and other materials. The minimum size can be cut to 10x10mm and various shapes, such as hexagon, octagon, regular square, rectangle, etc. This machine has stable performance, standard size of the mosaics cut out, high efficiency, good quality, simple and convenient operation and maintenance, etc.

Product Features

The automatic tile cutting machine is suitable for cutting PC brick,imitation stone brick,terrazzo,ceramic,granite,marble and other materials within 600/800mm width.It can be put 2-25 pcs blades to cut various sizes, such as hexagon, diamond shape, octagon conventional square, rectangle, etc. Automatic cutting machine with a minimum cutting size of4*4mm and a cutting thickness of less than 50mm. The machine has stable performance, standard cutting size and high efficiency. 8 hours a day,100*100mm products can be cut up to 250-350 square meters.

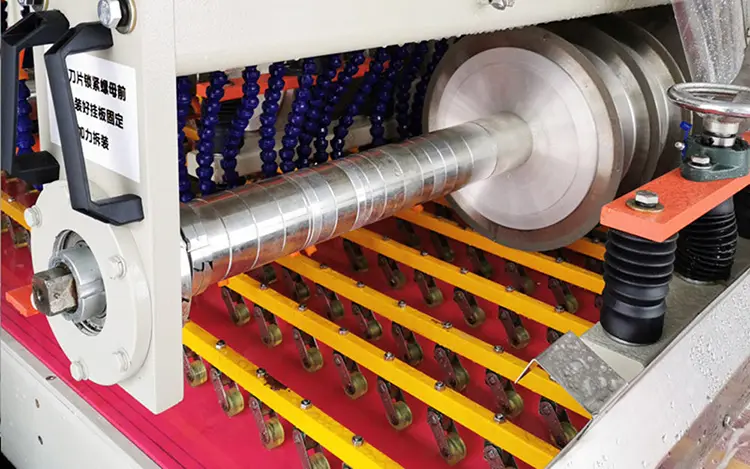

1.Cutting with multi blades, cut into multiple pieces at one time.

2.Equipped with automatic pressing plate, can process 10*10 mm mosaics.

3.Maximum working width 600 / 800mm

Technical Data
