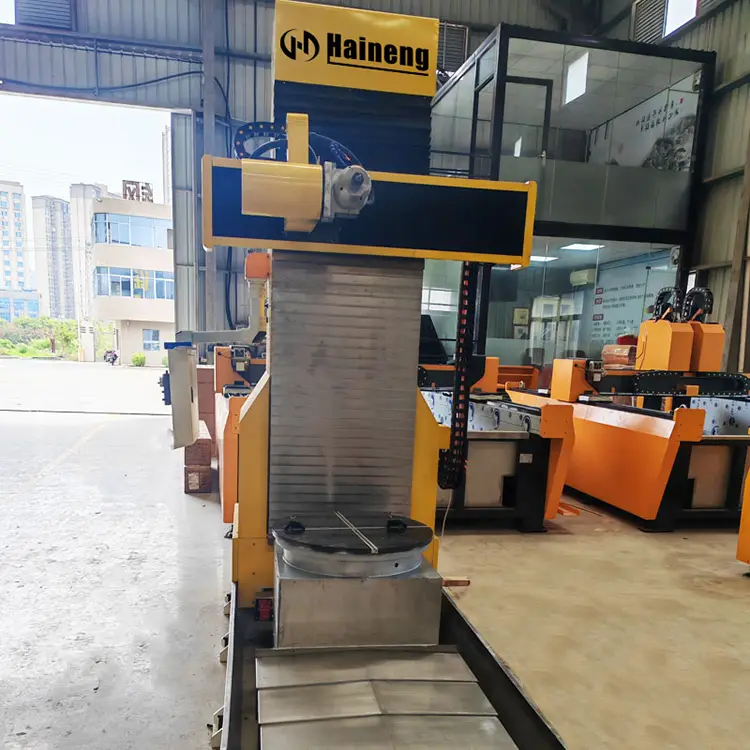

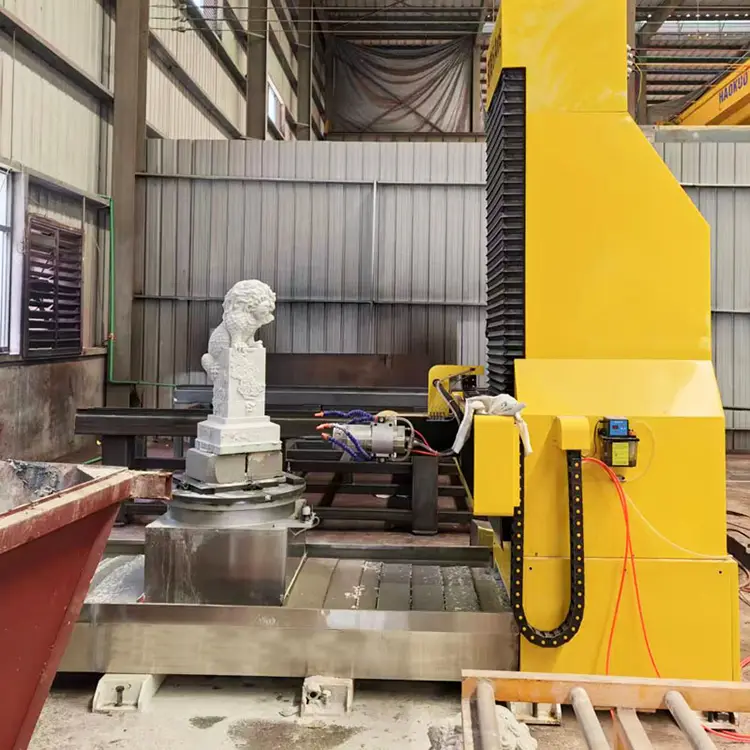

This 5 Axis 3D engraving machine features a high-performance design with advanced 5-axis linkage technology, equipped with high-performance servo motors and precision gearboxes to ensure high accuracy and stability in the engraving process. The machine is equipped with a ±90 degree pendulum head and ±360-degree rotary table, and combined with the RTCP 5-axis control system, it can realise multi-angle flexible processing. It is suitable for relief carving, artwork and other stone precision processing, is the ideal choice for high-end stone carving.
|
Model |
DKJ-LT1050 |
|
Effective travel |
X: 800，Y: 1200, Z: 1200 |
|
Processing size（W*H） |
500* 1000mm |
|
Swing head stroke |
±90 degrees |
|
Turntable Stroke |
±360 degrees |
|
Processing speed |
15000mm/min |
|
Spindle power |
7.5KW (water-cooled variable frequency) |
|
Spindlespeed |
0-24000r/min (adjustable) |
|
Inverter power |
7.5KW |
|
Working voltage |
AC380V/50HZ |
|
Drive motor |
Wezhi servo motor XYZ 1.5KW，B axis 2.3KW，C axis 750W |
|
Head swing reducer |
A axis Zhuolan RV cycloidal pin reducer |
|
Guideway |
X axis 25 rails, Y axis 35 double rails, Z axis 30 double rails |
|
Screw |
X axis 2510 screws， Y axis Z axis 3210 screws |
|
Cooling system |
CW3000 chiller |
|
Bed and load-bearing |
High-quality bridge steel bed, stainless steelsink |
|
Control system |
Weihong five-axis control system, with rtcp function |
|
Controlcabinets |
Built-in control box |
|
Lubrication method |
Electric oil injection pump |
|
Dust prevention |
Stainless steel dustproof stainless steelsink |
