5 Axis CNC Bridge Saw

Intelligent five-axis bridge cutting machine leads a new revolution in stone processing: precise, efficient and multifunctional

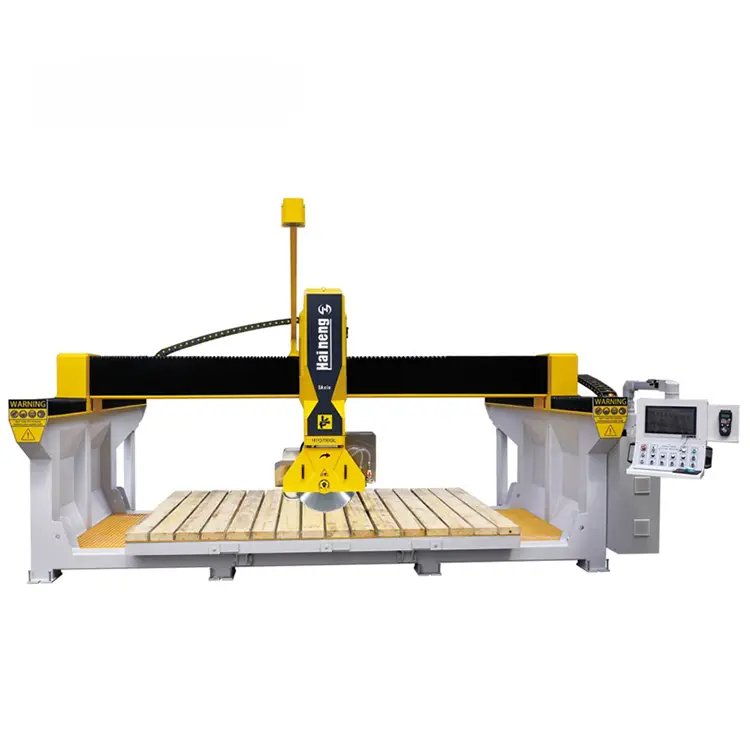

Intelligent 5 Axis CNC Bridge Saw is a comprehensive five-axis processing equipment. With its excellent processing capability, automation level and intelligent functions, it is becoming a benchmark equipment in the stone processing industry. It is suitable for cutting and milling of various stones such as granite, marble slabs, artificial stone and rock slabs. The equipment integrates cutting, edging, chamfering, rounding, hole opening and other functions. The camera function locates the layout and automatically measures the thickness of the plate and the size of the tool. The fool-style touch interface automatically generates graphics according to the data, and one-button start automatically completes the processing. Its powerful functions enable these stones to be processed into products of various shapes and sizes.

Intelligent layout, precise and efficient

Traditional stone processing relies on manual measurement and layout, which is inefficient and prone to errors. The intelligent five-axis bridge cutting machine is equipped with a high-precision camera automatic layout system. It quickly collects the size and contour data of the plate through an industrial-grade camera, automatically optimizes the cutting plan, greatly improves the material utilization rate, reduces manual intervention, and the layout accuracy can reach ±0.1mm, significantly reducing the scrap rate.

The functional characteristics and core advantages of five axis CNC bridge saw

The five axis CNC bridge saw is a multifunctional stone processing equipment that integrates saw blades and cutting tools. It is mainly used for cutting, chamfering, milling, edge grinding, drilling and other complex processing requirements of decorative materials such as quartz, marble, and rock slabs. Its core advantages are reflected in the following aspects:

Multi axis linkage and high-precision machining: Adopting five axis linkage technology, combined with high-precision RV reducer and cast rotating bracket, it can achieve complex machining such as arbitrary straight line cutting, arc cutting, polygon cutting, and irregular shape shaping. The shaft head swing accuracy is high and the rigidity is strong.

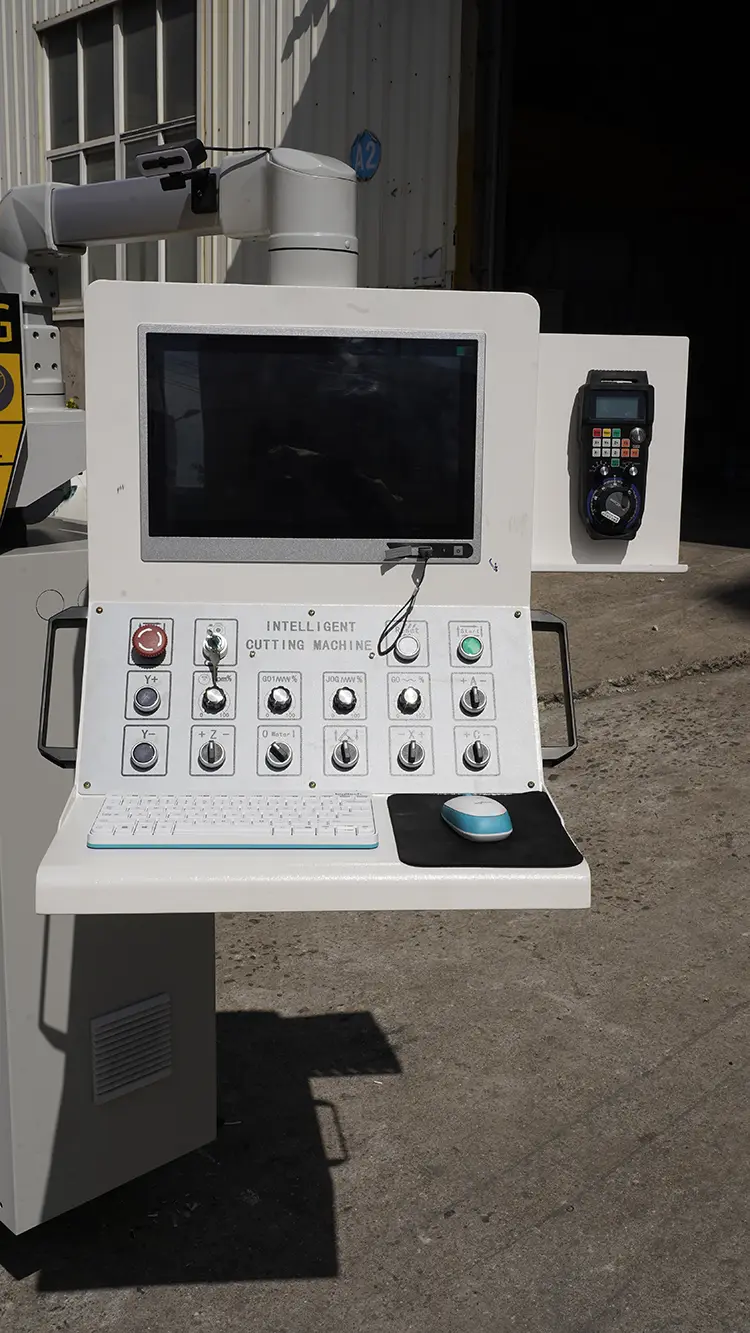

Intelligent operation and efficient layout: Equipped with a self-developed full graphic operating system, it supports high-definition camera photography layout, widescreen touch screen operation, manual programming or PC programming, WYSIWYG, reducing operational difficulty.

Automation and Multi functional Integration: Equipped with automatic flipping tabletop and suction cup moving function, supporting integrated operations such as cutting, chamfering, milling, edge grinding, slotting, drilling, etc., suitable for kitchen countertops, background walls, irregular stones and other scenarios.

The five axis CNC bridge saw, with its versatility and high precision, is widely used in the following scenarios:

Stone processing industry: suitable for kitchen countertop processing of marble, quartz, and rock slabs, background wall imitation, and cutting of irregular stones.

Customized production: supports complex shape processing to meet personalized decoration needs, such as arc chamfering, milling irregular edges, etc.

Industrial mass production: The split table design is convenient for loading and unloading, and the lifting function facilitates the movement of the board, improving the efficiency of large-scale production

Five-axis linkage, complex processing in one molding

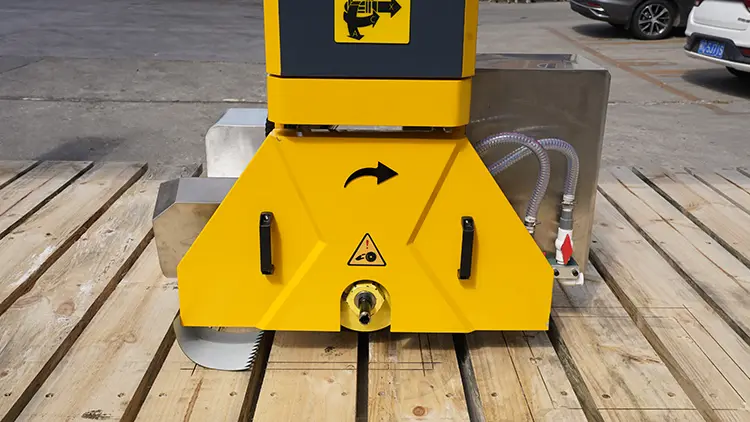

The equipment adopts the structure of X/Y/Z three linear axes + dual rotary axes (A/C axes), and the head can realize 360° continuous rotation in all directions, supporting horizontal, vertical, arc, circular and any angle cutting. Whether it is conventional straight line cutting or complex shapes such as Taichung basin, under-counter basin, special-shaped parquet, it can be completed accurately. At the same time, the equipment supports 45° bevel cutting, hole opening, chamfering, milling and other processes to meet high-end customization needs.

Laser positioning + intelligent detection, more accurate processing

To ensure processing accuracy, the equipment is equipped with a high-precision laser positioning system to track the cutting path in real time to avoid deviation. In addition, the intelligent thickness measurement function can automatically detect the thickness of the plate, match the best tool parameters, and ensure stable processing quality.

Efficient and stable, reducing labor costs

Suction cup shifting function: using high-load-bearing vacuum suction cups to firmly grasp the plate and improve processing safety.

Intelligent operating system: The interface is simple and supports graphical programming, so operators can get started quickly.

High-performance motor: strong power, fast processing speed, while maintaining high precision and improving production efficiency.
